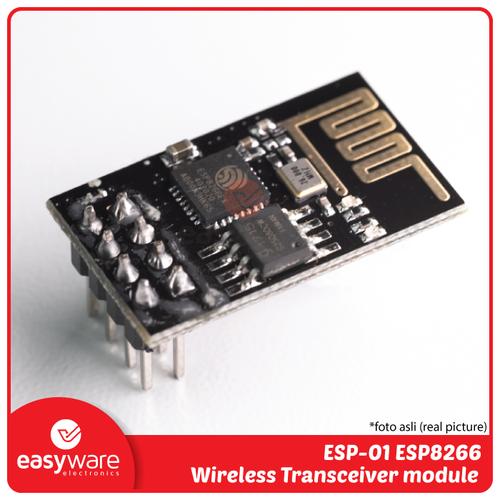

This amazingly priced wireless module allows any microcontroller to connect to a 802.11b/g/n wireless network. This in turn provides your microcontroller project with the ability or request data from a server anywhere in the word via a suitable WiFI connection. Control of the module couldn't be simpler as it comes pre-flashed with a serial application allowing it to be controlled via simple 'AT' serial (9600 baud default) commands.
To interface to the module a standard 0.1" pitch 8 pin header is pre-soldered proving access to power, serial, and configuration pins.
Please Note: This module operates at 3.3V only. If interfacing to a 5V microcontroller level shifters should be used.
FITUR DAN SPESIFIKASI: * Module : ESP-01 * Device : ESP8266MOD * Frequency : (ISM): 2.4GHz * Power : +25dBm * Supported Wifi : 802.11 b/g/n * Operating voltage : 3.3V * Min Current (Sleep) : 10mA * Max current (connected to 802.11b network) : 215mA
