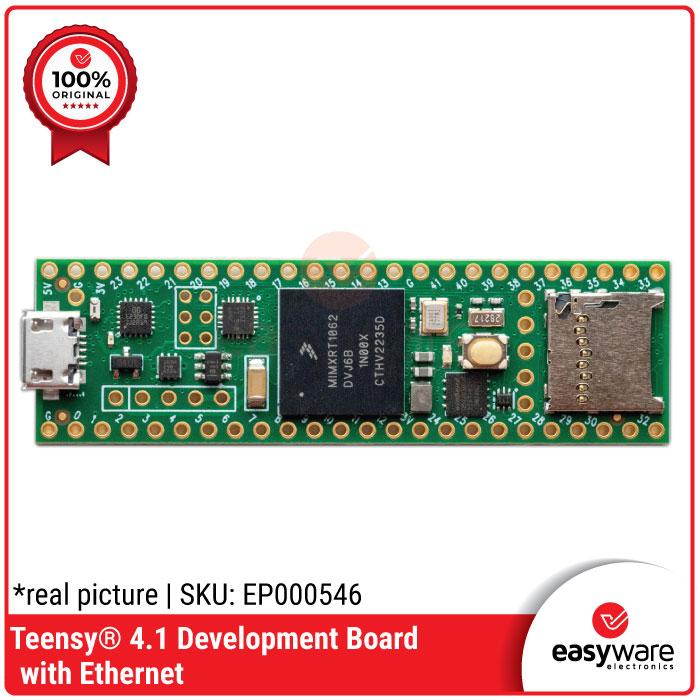

Teensy 4.1 USB Microcontroller Development Board - With Ethernet
Rp990.000
Pilih ukuran: With Ethernet
Hi #RekanEasyWare ...
- EasyWare Part# [WITHOUT ETHERNET]: EP000083
- EasyWare Part# [WITH ETHERNET]: EP000546
Keterangan:
- 100% Original.
- Barang sangat terbatas.
- Teensy 4.0: https://tokopedia.com/easyware-id/teensy-4-0-original-development-board-tensy-tensi-4-0
Teensy 4.1 can be programmed using the Arduino IDE with Teensyduino add-on. Designed to bring all general-purpose I/O pins to breadboard-friendly pads on the outside edges.
Specification :
- ARM Cortex-M7 at 600 MHz
- Float point math unit, 64 & 32 bits
- 7936K Flash, 1024K RAM (512K tightly coupled), 4K EEPROM (emulated)
- QSPI memory expansion, locations for 2 extra RAM or Flash chips
- USB device 480 Mbit/sec & USB host 480 Mbit/sec
- 55 digital input/output pins, 35 PWM output pins
- 18 analog input pins
- 8 serial, 3 SPI, 3 I2C ports
- 2 I2S/TDM and 1 S/PDIF digital audio port
- 3 CAN Bus (1 with CAN FD)
- 1 SDIO (4 bit) native SD Card port
- Ethernet 10/100 Mbit with DP83825 PHY
- 32 general purpose DMA channels
- Cryptographic Acceleration & Random Number Generator
- RTC for date/time
- Programmable FlexIO
- Pixel Processing Pipeline
- Peripheral cross triggering
- Power On/Off management
Package :
1 x Teensy 4.1 USB Microcontroller Development Board
- EasyWare Part# [WITHOUT ETHERNET]: EP000083
- EasyWare Part# [WITH ETHERNET]: EP000546
Keterangan:
- 100% Original.
- Barang sangat terbatas.
- Teensy 4.0: https://tokopedia.com/easyware-id/teensy-4-0-original-development-board-tensy-tensi-4-0
Teensy 4.1 can be programmed using the Arduino IDE with Teensyduino add-on. Designed to bring all general-purpose I/O pins to breadboard-friendly pads on the outside edges.
Specification :
- ARM Cortex-M7 at 600 MHz
- Float point math unit, 64 & 32 bits
- 7936K Flash, 1024K RAM (512K tightly coupled), 4K EEPROM (emulated)
- QSPI memory expansion, locations for 2 extra RAM or Flash chips
- USB device 480 Mbit/sec & USB host 480 Mbit/sec
- 55 digital input/output pins, 35 PWM output pins
- 18 analog input pins
- 8 serial, 3 SPI, 3 I2C ports
- 2 I2S/TDM and 1 S/PDIF digital audio port
- 3 CAN Bus (1 with CAN FD)
- 1 SDIO (4 bit) native SD Card port
- Ethernet 10/100 Mbit with DP83825 PHY
- 32 general purpose DMA channels
- Cryptographic Acceleration & Random Number Generator
- RTC for date/time
- Programmable FlexIO
- Pixel Processing Pipeline
- Peripheral cross triggering
- Power On/Off management
Package :
1 x Teensy 4.1 USB Microcontroller Development Board
