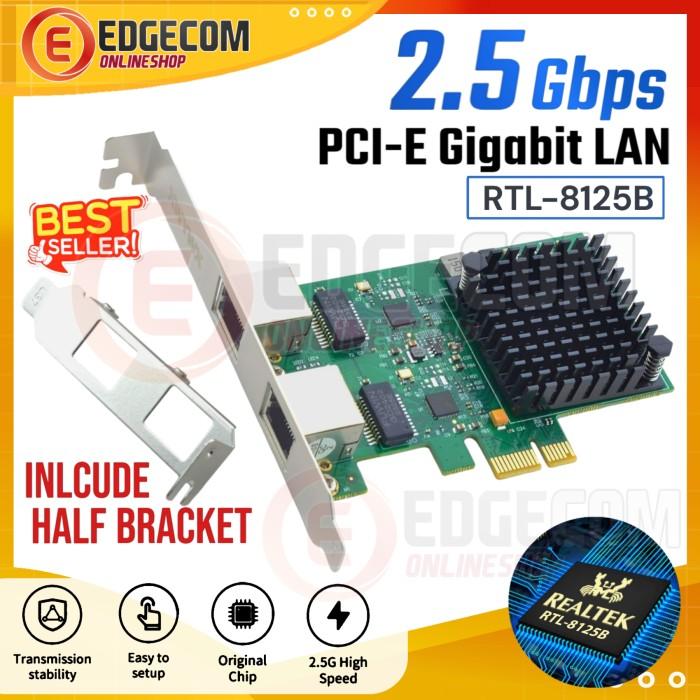

PCI E x1 Ethernet LAN Card 2.5Gbps Gigabit Network Pcie Express Single port RTL8125B NETLINE - DUAL PORT
Rp950.000
Pilih warna: DUAL PORT
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: PCI-E CARD
Tersedia 2 varian port :
1. single port
2. dual port
2.5Gb PCIe X1 Converged Network Card RJ45 Port With RTL8125B
PCI Express RTL8125B Dual-Port 2.5G network adapter is combines a four-speed IEEE802.3 compatible Media Access controller with a four-speed Ethernet transceiver, it is complies with the IEEE802.3u specification for 10/100Mbps Ethernet ,the IEEE802.3ab specification for 1000Mbps Ethernet and IEEE802.3bz specification for 2500Mbps Ethernet. Also it offers high-speed transmission over CAT5e UTP cable OR CAT3 UTP(10Mbps only)cable .it is suitable for multiple market segments and emerging applications, such as desktop, workstation, server, communications platforms, and embedded applications.
The X2R2115-11 2.5Gb 2*RJ45 Ethernet Server Card Specification:
Integrated 10M BASE-Te and 100/1000M/2.5G base-T 802.3 compatible transceiver, Supports 2.5G and 1G Lite mode.
Auto-Negotiation with Extended Next Page capability(XNP), Support PCI Express Specification Revision 2.1, X1.
Supports pair swap/polarity/skew correction, Crossover Detection& Auto-Correction, Supports 1-Lane 2.5/5Gbps PCI Express Bus.
Supports hardware ECC(Error correction code)function,Hardware CRC(Cyclic Redundancy Check)function.
Supports PCI MSI (Message Signaled Interrupt)and MSI-X, Transmit/Receive on-chip buffer support.
Supports ECMA-393 ProxZzzy Standard for sleeping hosts, RTL8125B+ASM1806 Chipset.
Wake-On-LAN and ‘RealWow!’ Technology (remote wake-up)supports.
Compatible with IEEE802.3,IEEE802.3u,IEEE802.3ab, IEEE1588v1,IEEE1588v2,IEEE80.2AS time synchronization,IEEE802.1Qav credit-based shaper algorithm, IEEE802.1P Layer 2 Priority encoding, IEEE802.1Q VLAN tagging.
Supports IEEE802.1ad Double VLAN, IEEE802.3az (Energy Efficient Ethernet), IEEE802.3bz(2.5GBase-T), full duplex flow control(IEEE802.3x).
Supports jumbo frame to 16K bytes, Supports Virtual Machine Queue(VMQ), quad core Receive –Side Scaling(RSS), Protocol Offload (ARP&NS).
System Requirements:
Windows* 7/ 8/8.1/10/11, Windows Server 2008/2012.
Linux, DOS.
•Product dimensions 15.5L x 3.2W x 22.3H centimetres weight : 160gr
Package include
2.5Gb 2*RJ45 PCI Express RTL8125B network adapter.
1* User’s Manual.
1* CD Driver.
1* Low profile bracket.
1. single port
2. dual port
2.5Gb PCIe X1 Converged Network Card RJ45 Port With RTL8125B
PCI Express RTL8125B Dual-Port 2.5G network adapter is combines a four-speed IEEE802.3 compatible Media Access controller with a four-speed Ethernet transceiver, it is complies with the IEEE802.3u specification for 10/100Mbps Ethernet ,the IEEE802.3ab specification for 1000Mbps Ethernet and IEEE802.3bz specification for 2500Mbps Ethernet. Also it offers high-speed transmission over CAT5e UTP cable OR CAT3 UTP(10Mbps only)cable .it is suitable for multiple market segments and emerging applications, such as desktop, workstation, server, communications platforms, and embedded applications.
The X2R2115-11 2.5Gb 2*RJ45 Ethernet Server Card Specification:
Integrated 10M BASE-Te and 100/1000M/2.5G base-T 802.3 compatible transceiver, Supports 2.5G and 1G Lite mode.
Auto-Negotiation with Extended Next Page capability(XNP), Support PCI Express Specification Revision 2.1, X1.
Supports pair swap/polarity/skew correction, Crossover Detection& Auto-Correction, Supports 1-Lane 2.5/5Gbps PCI Express Bus.
Supports hardware ECC(Error correction code)function,Hardware CRC(Cyclic Redundancy Check)function.
Supports PCI MSI (Message Signaled Interrupt)and MSI-X, Transmit/Receive on-chip buffer support.
Supports ECMA-393 ProxZzzy Standard for sleeping hosts, RTL8125B+ASM1806 Chipset.
Wake-On-LAN and ‘RealWow!’ Technology (remote wake-up)supports.
Compatible with IEEE802.3,IEEE802.3u,IEEE802.3ab, IEEE1588v1,IEEE1588v2,IEEE80.2AS time synchronization,IEEE802.1Qav credit-based shaper algorithm, IEEE802.1P Layer 2 Priority encoding, IEEE802.1Q VLAN tagging.
Supports IEEE802.1ad Double VLAN, IEEE802.3az (Energy Efficient Ethernet), IEEE802.3bz(2.5GBase-T), full duplex flow control(IEEE802.3x).
Supports jumbo frame to 16K bytes, Supports Virtual Machine Queue(VMQ), quad core Receive –Side Scaling(RSS), Protocol Offload (ARP&NS).
System Requirements:
Windows* 7/ 8/8.1/10/11, Windows Server 2008/2012.
Linux, DOS.
•Product dimensions 15.5L x 3.2W x 22.3H centimetres weight : 160gr
Package include
2.5Gb 2*RJ45 PCI Express RTL8125B network adapter.
1* User’s Manual.
1* CD Driver.
1* Low profile bracket.
