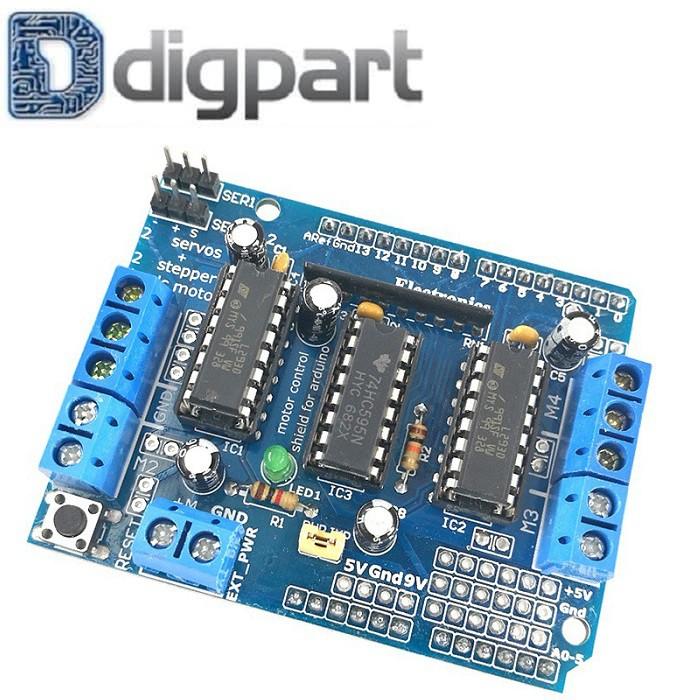

L293D MOTOR DRIVER SHIELD ARDUINO

55970586/1831461215 Motor driver shield L293D yang kompatibel dengan board arduino (bisa ditancapkan langsung di arduino UNO dan MEGA). Spesifikasi : Four HBridges: Two L293D Motor driver chips L293D is rated at 0.6A per bridge (1.2A peak) with thermal shutdown protection, internal kickback protection diodes. Motor Voltages from 4.5VDC to 16VDC. (up to 36V if C6 and C7 are upgraded) Up to 4 bidirectional DC motors with individual 8bit speed selection (256 speeds) Up to 2 stepper motors (unipolar or bipolar) Pull down resistors keep motors disabled during powerup Separate Logic and Motor power connections Terminal block connectors for motors and power 2 connections for 5V #39;hobby #39; servos Dimensi (PxLxT) : 7 x 5.3 x 1.3 cm
