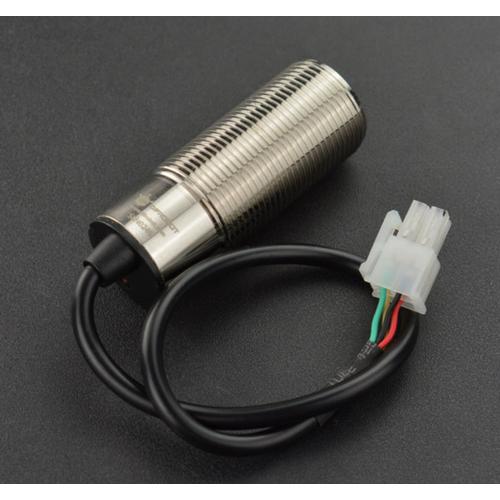

URM08 Waterproof Industrial Ultrasonic Distance Sensor (35~550cm) - URM08
Rp1.995.000
Pilih tipe: URM08
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: SENSOR MOTOR ACTUATOR
URM08 - Waterproof Industrial Ultrasonic Distance Sensor (35~550cm, ModBus-RTU)
Penuhi kebutuhan komponenmu di toko ini
Happy Shopping!!
With an internal temperature compensation and accurate distance detection, URM08-RS485 is a combination of temperature measurement device and distance inspection tool. The inner is fully enclosed and the external is made of metal crust, which has brought advantages such as waterproof, dustproof and corrosion resistance. It is applicable to detections of liquid level, levels, and barrier applications. As a high standard sensor, it guarantees smaller blind zone and larger inspection range. On the premise of stable output data, it shows better measurement capabilities in the market of temperature sensors and distance detection sensors.
SPECIFICATION
Operating Voltage: DC 6.0 ~ 12.0V
Operating Current: 250mA
Effective Range: 35 ~ 550 cm
Distance Resolution: 1cm
Temperature Resolution: 0.1°C
Temperature Error: ± 1 ℃
Measurement Period: 70ms
Operating Temperature Range: -10 ~ 70 ℃
Distance Error: ±1%
Operating Humidity Range: RH<75%
Acoustic Frequency: 38 ~ 42KHz
Direction Angle: 60 °
Protection Grade: IP65
Communication Interface: RS485 ModBus-RTU
Note:
-Tutorial dan penjelasan lebih lanjut dapat dilihat di datasheet atau opensource elektronika yang tersedia di internet
-TIDAK ADA GARANSI SUPPLIER MAUPUN TOKO
Penuhi kebutuhan komponenmu di toko ini
Happy Shopping!!
With an internal temperature compensation and accurate distance detection, URM08-RS485 is a combination of temperature measurement device and distance inspection tool. The inner is fully enclosed and the external is made of metal crust, which has brought advantages such as waterproof, dustproof and corrosion resistance. It is applicable to detections of liquid level, levels, and barrier applications. As a high standard sensor, it guarantees smaller blind zone and larger inspection range. On the premise of stable output data, it shows better measurement capabilities in the market of temperature sensors and distance detection sensors.
SPECIFICATION
Operating Voltage: DC 6.0 ~ 12.0V
Operating Current: 250mA
Effective Range: 35 ~ 550 cm
Distance Resolution: 1cm
Temperature Resolution: 0.1°C
Temperature Error: ± 1 ℃
Measurement Period: 70ms
Operating Temperature Range: -10 ~ 70 ℃
Distance Error: ±1%
Operating Humidity Range: RH<75%
Acoustic Frequency: 38 ~ 42KHz
Direction Angle: 60 °
Protection Grade: IP65
Communication Interface: RS485 ModBus-RTU
Note:
-Tutorial dan penjelasan lebih lanjut dapat dilihat di datasheet atau opensource elektronika yang tersedia di internet
-TIDAK ADA GARANSI SUPPLIER MAUPUN TOKO
