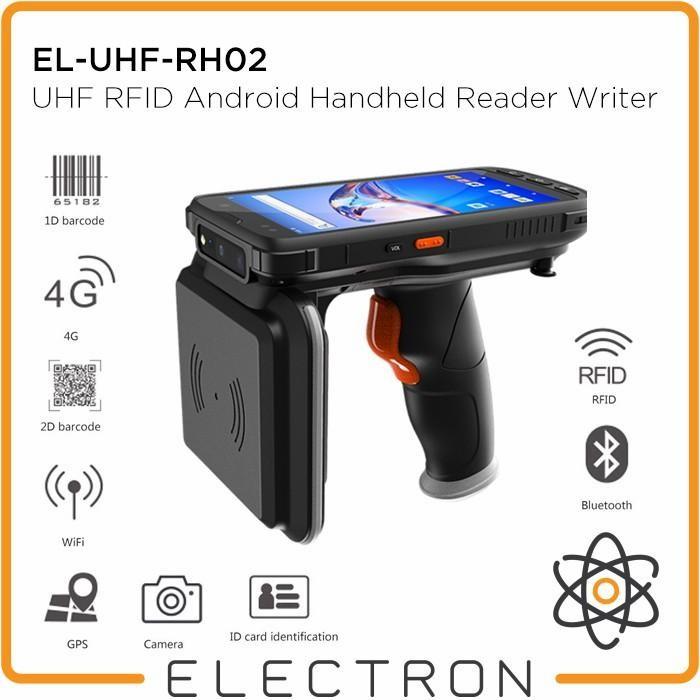

EL-UHF-RH02 UHF RFID Android Handheld Reader Writer Long Range 4G 3G - EL-UHF-RH02 Std
Rp12.680.000
Pilih varian: EL-UHF-RH02 Std
EL-UHF-RH02
https://electron.id/produk/el-uhf-rh02/
Dimension: 166 * 793 * 31mm
Weight: 600g (including battery & wrist strap)
Display: Gorilla Glass 3 9H 5.5 in. TFT LCD (720x1440) touch screen with backlight
Backlight: LED Backlight
Expansions: 1 PSAM, 1 SIM, 1 TF
Rechargeable: li-ion polymer 3.8v, 9000mAH
CPU: Cortex A73 2.0GHz octa-core
Operation System: Android 10.0
Storage: 16GB ROM, MicroSD Slot
Ram: 2GB
Temperature Operation: -20C to +50C
Temperature Storage: -20C to +70C
Humidity: 5% RH to 95% RH (non-condensing)
Drop Specification: 1.5m drop to concrete
Sealing: IP65, IEC Compliance
Development Environment
Language: Java
Environment: Android Studio / Eclipse
Data Communication
WWAN:
- TDD-LTE Band 38, 39, 40, 41
- FDD-LTE
- WCDMA (850/1900/2100MHz)
- GSM/GPRS/Edge 850/1800/1900MHz
WLAN 2.45GHz / 5GHz Dual Frequency, IEEE 802.11 a/b/g/n
GPS: A-GPS, accuracy of 5m
Camera: Rear 13.0 Megapixel, front 5.0 Megapixel
Lens: Auto-focus with LED Flash
RFID Reader:
Frequency: UHF 902-928MHz
Protocol: ISO18000-6C (EPC Gen 2)
Antenna Gain: 3dBi Circular
R/W Range: 5-7m
Accessories:
1 x Power Supply
1 x Li-Po Battery
1 x DC Charging Cable
1 x Type C Data Cable
Warranty: 1 Year
SDK & demo application examples:
https://cloud.electron.id/s/DJJLDn554opWeSX
### UHF Tags:
Electron EL-UHF-TML7007M (Metal Tag)
https://www.tokopedia.com/electron/uhf-rfid-metal-tag-label-sedang-impinj-monza-r6-p-el-uhf-tml7007m
Electron EL-UHF-9424-W
https://www.tokopedia.com/electron/el-uhf-9424-w-rfid-tag-wet-inlay-sticker-windshield-epc-gen2-headlamp
Electron EL-UHF-LJ01 (Jewelry Tag)
https://www.tokopedia.com/electron/el-uhf-lj01-uhf-rfid-tag-jewelry-label-sticker-nxp-ucode-7-perhiasan
Electron EL-UHF-TLF01 (Clothing Tag)
https://www.tokopedia.com/electron/el-uhf-tlf01-uhf-rfid-laundry-tag-flexible-fabric-kain-pakaian
https://electron.id/produk/el-uhf-rh02/
Dimension: 166 * 793 * 31mm
Weight: 600g (including battery & wrist strap)
Display: Gorilla Glass 3 9H 5.5 in. TFT LCD (720x1440) touch screen with backlight
Backlight: LED Backlight
Expansions: 1 PSAM, 1 SIM, 1 TF
Rechargeable: li-ion polymer 3.8v, 9000mAH
CPU: Cortex A73 2.0GHz octa-core
Operation System: Android 10.0
Storage: 16GB ROM, MicroSD Slot
Ram: 2GB
Temperature Operation: -20C to +50C
Temperature Storage: -20C to +70C
Humidity: 5% RH to 95% RH (non-condensing)
Drop Specification: 1.5m drop to concrete
Sealing: IP65, IEC Compliance
Development Environment
Language: Java
Environment: Android Studio / Eclipse
Data Communication
WWAN:
- TDD-LTE Band 38, 39, 40, 41
- FDD-LTE
- WCDMA (850/1900/2100MHz)
- GSM/GPRS/Edge 850/1800/1900MHz
WLAN 2.45GHz / 5GHz Dual Frequency, IEEE 802.11 a/b/g/n
GPS: A-GPS, accuracy of 5m
Camera: Rear 13.0 Megapixel, front 5.0 Megapixel
Lens: Auto-focus with LED Flash
RFID Reader:
Frequency: UHF 902-928MHz
Protocol: ISO18000-6C (EPC Gen 2)
Antenna Gain: 3dBi Circular
R/W Range: 5-7m
Accessories:
1 x Power Supply
1 x Li-Po Battery
1 x DC Charging Cable
1 x Type C Data Cable
Warranty: 1 Year
SDK & demo application examples:
https://cloud.electron.id/s/DJJLDn554opWeSX
### UHF Tags:
Electron EL-UHF-TML7007M (Metal Tag)
https://www.tokopedia.com/electron/uhf-rfid-metal-tag-label-sedang-impinj-monza-r6-p-el-uhf-tml7007m
Electron EL-UHF-9424-W
https://www.tokopedia.com/electron/el-uhf-9424-w-rfid-tag-wet-inlay-sticker-windshield-epc-gen2-headlamp
Electron EL-UHF-LJ01 (Jewelry Tag)
https://www.tokopedia.com/electron/el-uhf-lj01-uhf-rfid-tag-jewelry-label-sticker-nxp-ucode-7-perhiasan
Electron EL-UHF-TLF01 (Clothing Tag)
https://www.tokopedia.com/electron/el-uhf-tlf01-uhf-rfid-laundry-tag-flexible-fabric-kain-pakaian
