RFID RC522 Arduino Reader Writer Module Kit SPI 13.56 MHz Mifare
Rp10.500
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: HF Tag - RFID NFC 1356 MHz
RFID-RC522
Modul baca tulis yang dengan protokol SPI. Kompatibel dengan Arduino dan berbagai microcontroller lain yang memiliki protokol SPI.
MF RC522 is applied to 13.56MHz contactless communication highly integrated chip card reader, is for the "Three Tables" application launch of a low-voltage, low-cost, small size and non-contact card reader chip, smart instrumentation and portable handheld devices developed better choice. MF RC522 using advanced modulation and demodulation concept completely integrated in all types of 13.56MHz passive contactless communication methods and protocols. Support 14443A compatible transponder signals. The digital part handles ISO14443A framing and error detection.
Electrical parameters
- Operating current: 13-26mA/DC 3.3V
- Idle current: 10-13mA/DC 3.3V
- Sleep current: <80uA
- Peak current: <30mA
- Operating Frequency: 13.56MHz
Product physical characteristics:
- Size: 40mm x 60mm
- Environmental Operating temperature: -20-80 degrees Celsius
- Environmental Storage Temperature: -40-85 degrees Celsius
- Relative humidity: relative humidity 5% -95%
Module interfaces SPI Parameter
- Data transfer rate: maximum 10Mbit/s
Tutorial:
- http://makecourse.weebly.com/week10segment1.html
- https://www.youtube.com/watch?v=yUtFinIsPWw
- https://www.youtube.com/watch?v=2Kr8eHHwcws
Library & tutorial:
- http://playground.arduino.cc/Learning/MFRC522

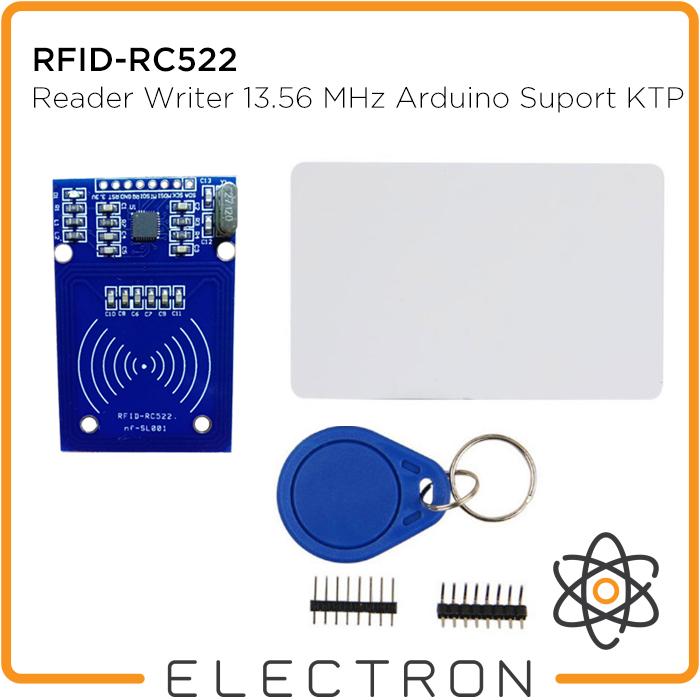

Isi Paket:
- 1 x RFID-RC522 module
- 1 x 13.56 MHz RFID Card
- 1 x 13.56 MHz RFID Keyfob
- 1 x pin lurus dan bengkok
Butuh kartu tambahan? Bisa beli di:
- https://www.tokopedia.com/electron/rfid-13-56-mhz-1k-card-tag-nfc-hf-iso-14443a-kartu-akses-absensi-rc522
