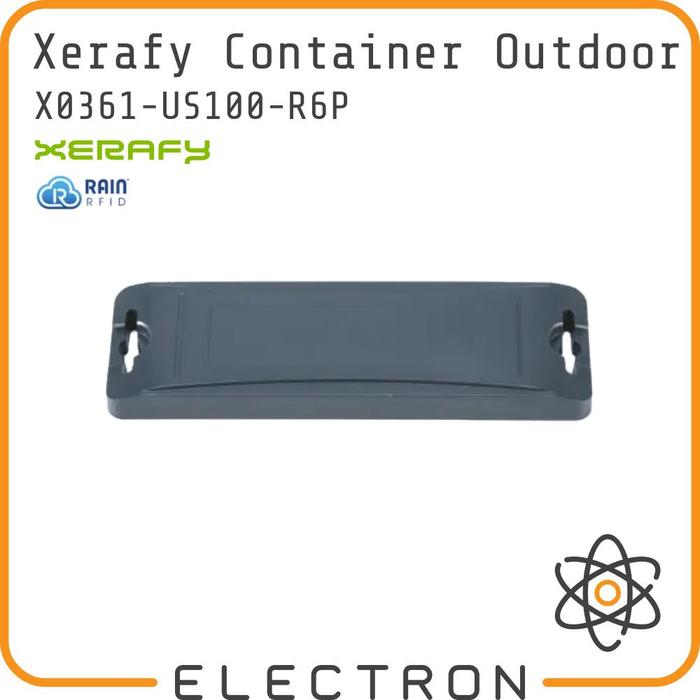

Xerafy Container Outdoor X0361-US100-R6P RFID Tag - Anti-Metal Vibration MIL-STD-810G Impinj Monza R6-P IP68 Waterproof UHF EPC Global Gen2 ISO 18000-6C Outdoor Tracking Chip Transponder

SKU: X0361-US100-R6P

UHF RFID Tag yang cocok untuk tracking container, ataupun kebutuhan logistik lainnya. Dapat ditempel ke permukaan logam (metal).

Applications
-Yard management
-Production logistics
-RTI management
-Long-distance shipping

Spesifikasi
-Frekuensi: 902-928 MHz (US)
-Info jarak baca dari Xerafy:
-Read range on metal: Up to 20 m
-Read range off metal: Up to 15 m
-Polarization: Linear

Spesifikasi ketahanan lingkungan
-Operational temperature: -40°C to +85°C
-Survival temperature: -40°C to +85°C (48 hours)
-IP rating: IP68
-Compression strength: 29 psi (200 kPa)
-Shock: 3ft (1 m) to concrete/granite
-Vibration: MIL-STD-810G

Spesifikasi fisik
-Material: Industry grade polymer
-Dimensions: 1 139 x 42.20 x 12 mm
-Weight: 41 g
-Mounting Systems: Rivets, Screws, Cable ties
-40 pcs / box

Spesifikasi chip
-Merk: Impinj
-Chip: Monza R6-P
-Protokol: RAIN RFID / ISO 18000-63 and EPCglobal Gen2v2 compliant
-EPC: 96 / 128 bits
-TID: 96 bits
-User memory: 64 / 32 bits
-Access Password:
-Kill Password:
-Read sensitivity: -22 dBm
-Write sensitivity: -17 dBm
-Operating Temperature: -40°C ~ 85°C
-Storage Temperature: -40°C ~ 125
-Usia pakai: 100,000 write cycles or retain data for 50 years
-ESD Performance: 2000V HBM

Referensi : https://electron.id/produk/xerafy-container-outdoor-x0361-us100-r6p/
