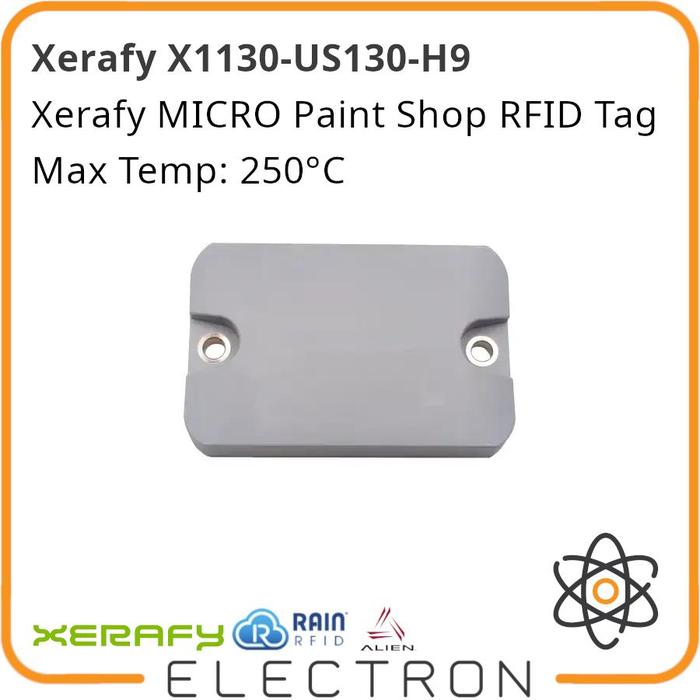

Xerafy X1130-US130-H9 MICRO Paint Shop RFID Tag UHF EPC EPC global Class 1 Gen2 Long Range Hi-temp High Temperature 250°C Alien Higgs 9 Chemical Resistant Waterproof IP68

UHF RFID Tag yang tahan terhadap temperatur tinggi (maks 250C), tahan terhadap kimia, dan lubang mounting dilapisi Stainless Steel.

Ideal applications: work-in-process, high-temp production, automotive assembly, and RTI management.

Spesifikasi Fisik:
- Dimensions (mm): 55 x 36.2 x 7.5 Temperatures
- Operational: -40C to +85C; Survival: -40C to +250C
- High temperature cycle: 250C (500 hours)
- IP Rating: IP68
- Compression strength: 181 psi (1250 kPa)
- Shock: 3ft (1 m) to concrete/granite
- Vibration: MIL-STD-810G
- Material: Industry grade polymer; 316L Stainless Steel; Silicone-free
- Mounting Systems:
- Stainless steel inserts: rugged mounting systems
- Screws (Rivet hole, M3)
- Pop rivets (Max size 3.2mm)
- Kemasan: 92 pcs / kotak

Spesifikasi Antenna:
- Read range fixed: Up to 32.8 ft (10 m)
- Read range handheld: Up to 23.0 ft (7 m)
- Polarization: Linear

Spesifikasi Chip:
- Merk: Alien
- Chip: Higgs 9 (H9)
- Protokol: ISO / IEC18000-6C
- EPC: 96 bits (expandable up to 496 bits)
- TID: 48 bits
- User memory: 688 bits
- Access Password: 32 Bit
- Kill Password: 32 bit
- Lock: User Memory can be Block Perma-Locked as well as read password protected in 256 bit Blocks
- Read sensitivity: Up to -20 dBm
- Write sensitivity: Up to -18 dBm
- Operating Temperature: -50C to +85C
- Operating Frequency: 840 to 960 MHz
- Data Retention: 50 Years
- Programming cycles: 200,000 write cycles at 25C

Referensi: http://electron.id/produk/xerafy-x1130-us130-h9/
