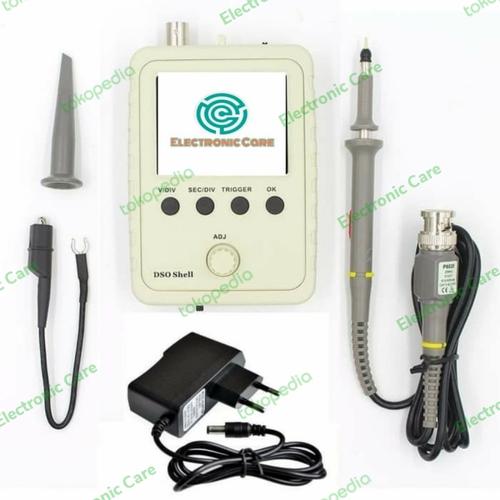

Oscilloscope Mini Osiloskop Digital DSO150
Rp699.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Semua Etalase
Original JYETech
Sudah di solder bonus Adaptor 9v
Features:
* Digital Oscilloscope Kit
*Has automatic, conventional and single trigger mode, convenient to capture the instantaneous waveform
*Digital displays waveform parameters, such as frequency, cycle, pulse width, duty cycle, maximum, minimum, average, peak value and effective value
*Can be triggered by a rise or drop edge
*The trigger level position is adjustable and with instructions
*Vertical displacement is adjustable and with instructions
*Waveforms before observable triggers
*Can freeze waveform display at any time
*Test signal source with 1KHz /3.3V square wave
*Save/tune out the waveform, the shutdown waveform does not disappear
*100 brand new and high quality
Specifications:
*2.4-inch color TFT LCD with 320 x 240 resolution
*Maximum Real Time Sampling Rate: 1Msps
*Precision: 12Bit
*Sampling Buffer Depth: 1024 bytes
*Number of Channel: 1
*Analog Band Width: 0~200KHz
*Vertical Sensitivity: 5mV/Div~20V/Div (progressive by 1-2-5)
*Trigger Position: 1/2 of buffer size fixed
*Sensitivity Error: < 5%
*Input Impedance: 1M Omega
*Power Supply: 9V DC
*Supply Current: 120mA
*Maximum Input Voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe)
*Coupling Methods: DC/AC/GND
*Horizontal Time Base Range: 10 s/Div~50s/Div (progressive by 1-2-5)
Package Contents:
1* Digital Oscilloscope Kit (As Pictures Show)
1*User Manual
Note: The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
