Atur jumlah dan catatan
Stok Total: Sisa 3
Subtotal
Rp38.725.000

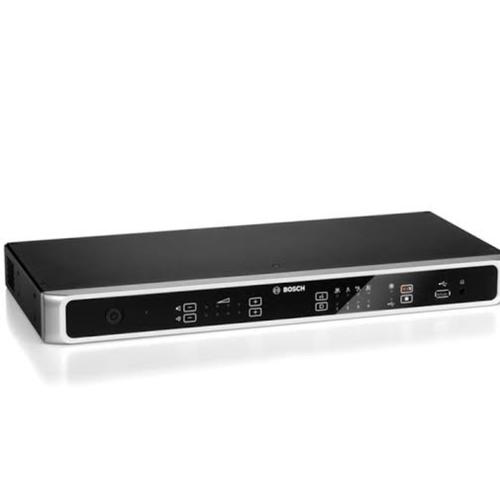

Control Unit BOSCH CCSD-CURD (CCS 1000D)
Rp38.725.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Produk TOA & BOSCH
BARANG BRAND NEW & 100% ORIGINAL BOSCH PRODUCT
BERGARANSI RESMI 2 TAHUN
BOSCH CONTROL UNIT CCSD-CURD (CCS1000D)
Control Units (Built-In MP3 Recorder + Monitor Loudspeaker + DAFS)
Plug-and-play functionality for quick and easy connection of up to 80 Discussion Devices
Intuitive web browser interface control for advanced configuration and control
Built‑in MP3 recorder with internal memory and USB recording
Built‑in Digital Acoustic Feedback Suppression (DAFS) for ensuring superior speech intelligibility
On-board support for automatic HD camera control
The Control Unit is the main component of the CCS 1000 Digital Discussion System. It supplies DC power to all connected Discussion Devices and monitors and controls the discussion system.
Touch‑button control allows for easy configuration and operation of the unit, while intuitive LED indicators give a clear indication of the system settings.
Conveniently positioned connections at the rear of the unit enable peripheral equipment to be connected to the discussion system, such as audio equipment and Bosch HD Conference Domes.
Intuitive web browser control allows basic and advanced system settings to be easily viewed and changed, as required.
• The CCSD-CURD that has additional features such as MP3 recording and Digital Acoustic Feedback Suppression (DAFS). The four RCA outputs at the rear of the CCSD-CURD ensure that the unit is optimized for use in courtrooms, i.e. for the recording of individual speakers.
Controls and Indicators
• Mains power on/off button with red/green LED indicator. Red indicates that the system is off (no power available from the external power supply). Green indicates that the system is active (Control Unit and all connected devices powered up).
• Plus/minus buttons for setting the volume range of all connected Discussion Devices – used in combination with LED indicators for showing the selected volume
• Microphone-mode button for selecting one of the microphone operating modes – used in combination with LED indicators for showing the selected mode
• Open microphone button for selecting the number of microphones that can be activated at the same time – used in combination with LED indicators for showing the number of activated microphones
• Plus/minus buttons for setting the volume of the built-in loudspeaker or headphones, if connected – used in combination with LED indicators for showing the selected volume
• Combined record/pause button for starting and pausing a recording session
• Stop recording button for ending a recording session
• Internal recording LED indicator, and USB recording LED indicator
Technical specifications
Electrical:
Mains voltage: 100 to 240 VAC ± 10%, Current consumption: Maximum 0.6 A (100 VAC) to 0.2 A (240 VAC)
DC supply to Discussion Devices: 24 V ± 1 V (current limited)
Number of Discussion Devices: per Control Unit Max. 40 devices per trunk connector (2 trunk x 40 = 80 Discussion Devices),
Discussion Device loudspeakers volume control: 15 steps of 1.5 dB (starting from: -10.5 dB)
Limit threshold level to unit: 12 dB above nominal level
Gain reduction due to number of open microphones (NOM): 1/SQRT (NOM), Sample rate: 44.1 kHz
Recorder (CCSD-CURD)
Recording/ Playback (bit rate): 64, 96, 128, 256 Kbit/sec, Recording/ Playback (sample frequency): 44.1 kHz
Monitoring loudspeaker (CCSD-CURD)
Nominal output: 72 dB SPL, Frequency response: 200 Hz to 12.5 kHz, Gain range mute: -10.5 to +12
USB memory stick compatibility (CCSD-CURD)
SanDisk USB memory stick: Formatted with FAT32 file system. Maximum size: 128 GB.
Mechanical
Dimensions including feet (H x W x D): 45 x 440 x 200 mm (1.8 x 17.3 x 7.9 in) 19” wide, 1 RU high, Height of feet: 5.5 mm (0.2 in)
Mounting: Tabletop 19-inch rack, Weight (CCSD-CU): Approx. 3.2 kg (7.1 lb), Weight (CCSD-CURD): Approx. 3.4 kg (7.5 lb)
Material (top): Painted metal, Material (base): Painted metal, Color (top): Traffic black (RAL 9017) matt-gloss
Color (base): Traffic black (RAL 9017) matt-gloss, Rim: Pearl light grey (RAL 9022) matt-gloss
Environmental
Operating temperature: 5 ºC to +45 ºC (+41 ºF to +113 ºF), Storage temperature: -40 ºC to +70 ºC (-40 ºF to +158 ºF)
Relative humidity: 5% to 98% non-condensing
BERGARANSI RESMI 2 TAHUN
BOSCH CONTROL UNIT CCSD-CURD (CCS1000D)
Control Units (Built-In MP3 Recorder + Monitor Loudspeaker + DAFS)
Plug-and-play functionality for quick and easy connection of up to 80 Discussion Devices
Intuitive web browser interface control for advanced configuration and control
Built‑in MP3 recorder with internal memory and USB recording
Built‑in Digital Acoustic Feedback Suppression (DAFS) for ensuring superior speech intelligibility
On-board support for automatic HD camera control
The Control Unit is the main component of the CCS 1000 Digital Discussion System. It supplies DC power to all connected Discussion Devices and monitors and controls the discussion system.
Touch‑button control allows for easy configuration and operation of the unit, while intuitive LED indicators give a clear indication of the system settings.
Conveniently positioned connections at the rear of the unit enable peripheral equipment to be connected to the discussion system, such as audio equipment and Bosch HD Conference Domes.
Intuitive web browser control allows basic and advanced system settings to be easily viewed and changed, as required.
• The CCSD-CURD that has additional features such as MP3 recording and Digital Acoustic Feedback Suppression (DAFS). The four RCA outputs at the rear of the CCSD-CURD ensure that the unit is optimized for use in courtrooms, i.e. for the recording of individual speakers.
Controls and Indicators
• Mains power on/off button with red/green LED indicator. Red indicates that the system is off (no power available from the external power supply). Green indicates that the system is active (Control Unit and all connected devices powered up).
• Plus/minus buttons for setting the volume range of all connected Discussion Devices – used in combination with LED indicators for showing the selected volume
• Microphone-mode button for selecting one of the microphone operating modes – used in combination with LED indicators for showing the selected mode
• Open microphone button for selecting the number of microphones that can be activated at the same time – used in combination with LED indicators for showing the number of activated microphones
• Plus/minus buttons for setting the volume of the built-in loudspeaker or headphones, if connected – used in combination with LED indicators for showing the selected volume
• Combined record/pause button for starting and pausing a recording session
• Stop recording button for ending a recording session
• Internal recording LED indicator, and USB recording LED indicator
Technical specifications
Electrical:
Mains voltage: 100 to 240 VAC ± 10%, Current consumption: Maximum 0.6 A (100 VAC) to 0.2 A (240 VAC)
DC supply to Discussion Devices: 24 V ± 1 V (current limited)
Number of Discussion Devices: per Control Unit Max. 40 devices per trunk connector (2 trunk x 40 = 80 Discussion Devices),
Discussion Device loudspeakers volume control: 15 steps of 1.5 dB (starting from: -10.5 dB)
Limit threshold level to unit: 12 dB above nominal level
Gain reduction due to number of open microphones (NOM): 1/SQRT (NOM), Sample rate: 44.1 kHz
Recorder (CCSD-CURD)
Recording/ Playback (bit rate): 64, 96, 128, 256 Kbit/sec, Recording/ Playback (sample frequency): 44.1 kHz
Monitoring loudspeaker (CCSD-CURD)
Nominal output: 72 dB SPL, Frequency response: 200 Hz to 12.5 kHz, Gain range mute: -10.5 to +12
USB memory stick compatibility (CCSD-CURD)
SanDisk USB memory stick: Formatted with FAT32 file system. Maximum size: 128 GB.
Mechanical
Dimensions including feet (H x W x D): 45 x 440 x 200 mm (1.8 x 17.3 x 7.9 in) 19” wide, 1 RU high, Height of feet: 5.5 mm (0.2 in)
Mounting: Tabletop 19-inch rack, Weight (CCSD-CU): Approx. 3.2 kg (7.1 lb), Weight (CCSD-CURD): Approx. 3.4 kg (7.5 lb)
Material (top): Painted metal, Material (base): Painted metal, Color (top): Traffic black (RAL 9017) matt-gloss
Color (base): Traffic black (RAL 9017) matt-gloss, Rim: Pearl light grey (RAL 9022) matt-gloss
Environmental
Operating temperature: 5 ºC to +45 ºC (+41 ºF to +113 ºF), Storage temperature: -40 ºC to +70 ºC (-40 ºF to +158 ºF)
Relative humidity: 5% to 98% non-condensing
