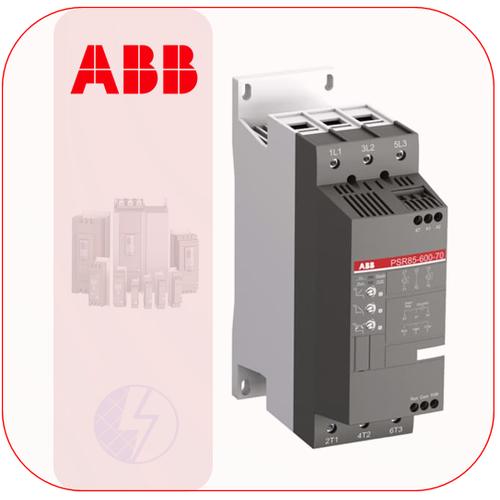

ABB Softstarter PSR85-600-70 Soft starter 85A 45KW 1SFA896114R7000

Softstarter PSR85-600-70 for max 600V main voltage and 100-240V 50/60Hz control supply voltage Cara kerja soft starter mirip inverter untuk mengurangi inrush current (lonjakan arus awal start), bedanya kalau di softstarter putaran motor tidak bisa diset Dimensions Product Net Width:180 mm Product Net Height:220 mm Product Net Depth / Length:70 mm Product Net Weight:2.1 kg Technical Rated Operational Voltage:208 ... 600 V AC Rated Control Supply Voltage (Us):100 ... 240 V AC Rated Control Circuit Voltage (Uc):50 Hz / 60 Hz 100 ... 240 V AC Rated Frequency (f):50/60 Hz Main Circuit 50 / 60 Hz Rated Operational Power - In-Line Connection (Pe):(230 V) 22 kW (400 V) 45 kW (500 V) 55 kW Rated Operational Current - In-Line Connection (Ie):85 A Service Factor Percentage:100 % Overload Protection:Recommended MS495 70 ... 90 Integrated Electronic Overload:No Adjustable Rated Motor Current Ie:No Starting Capacity at Maximum Rated Current Ie:4xIe for 6s Ramp Time:0 ... 20 second [unit of time] 1 ... 10 second [unit of time] Initial Voltage During Start:40 ... 70 % Step Down Voltage Special Ramp:100 ... 60 % Current Limit Function:No Switch for Inside Delta Connection:No Run Signal Relay:Yes By-pass Signal Relay:Yes Fault Signal Relay:No Overload Signal Relay:No Signal indication completed start ramp (LED):Green Signal indication ready to start/standby ON (LED):Green Signal indication running R (LED):Green Signal indication ramping up/down (LED):Green Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:10 Communication:FiledBusPlug(Optional) Degree of Protection:IP10 Terminal Type:Main Circuit: Bars ...
