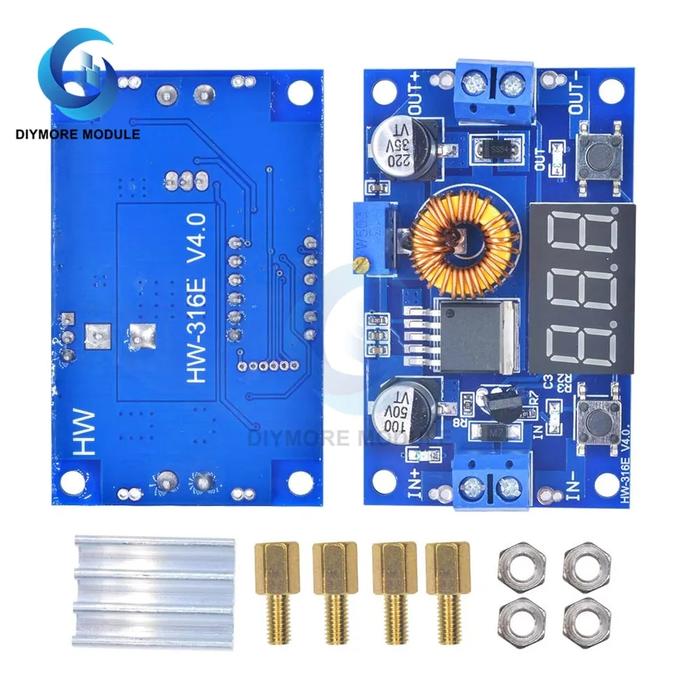

xl4015 display voltmeter 7segmen buck converter dc step down 5A - XL4015 CV
Rp45.000
Pilih warna: XL4015 CV
1.Input voltage range:438VDC(Note:input voltage not exceeding 38V)
2.Output voltage range:1.25 - 36VDC adjustable
3.Output current: 0 - 5A
4.Output power: 75W
5.Working temperature: -40~+85 degrees
6.Operating frequency: 180KHz
7.Efficiency:96%(max)
8.Short circuit protection: yes(limit current 8A).
9.Over temperature protection
10.Input reverse polarity protection: None (if required, high current diode in series with the input).
terima kasih
2.Output voltage range:1.25 - 36VDC adjustable
3.Output current: 0 - 5A
4.Output power: 75W
5.Working temperature: -40~+85 degrees
6.Operating frequency: 180KHz
7.Efficiency:96%(max)
8.Short circuit protection: yes(limit current 8A).
9.Over temperature protection
10.Input reverse polarity protection: None (if required, high current diode in series with the input).
terima kasih
