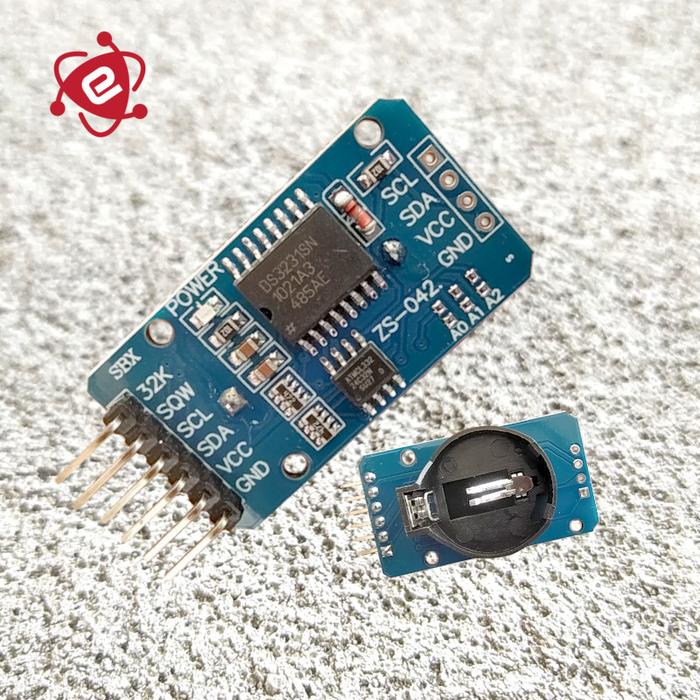

RTC DS3231SN DS3231 IIC Chip Module Arduino Raspberry Pi - Biru SN
Rp32.700
Pilih jenis: Biru SN
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Semua Etalase
*** Stok selalu kami update, silahkan langsung order.
Tersedia pilihan tipe RTC berikut :
o RTC DIYMore DS3231SN AT24C32 IIC Precision Module Original
o RTC ElektronMart DS3231SN
o Chip RTC DS3231SN Philippines
o Chip RTC DS3231SN Thailand
o RTC Generik DS3231SN
o RTC Generik DS3231M
Extremely accurate I2C real-time clock (RTC), with an integrated temperature-compensated crystal oscillator (TCXO) and crystal. The device incorporates a battery input, disconnect the main power supply and maintains accurate timekeeping. Integrated oscillator improve long-term accuracy of the device and reduces the number of components of the production line. The DS3231SN is available in commercial and industrial temperature ranges, using a 16-pin 300mil SO package.
Specification :
o Size : 38mm (length) x 22mm (W) x 14mm (height)
o Weight : 8g
o Operating voltage : 3.3 - 5 .5 V
o Clock chip : High-precision clock chip DS3231SN
o Clock Accuracy : 0-40 ° range, the accuracy 2ppm, the error was about 1 minute
o Calendar alarm clock with two
o Programmable square-wave output
o Real time clock generator seconds, minutes, hours, day, date, month and year timing and provide valid until the year 2100 leap year compensation
o Chip temperature sensor comes with an accuracy of ± 3 °
o Memory chips : AT24C32 (storage capacity 32K)
o IIC bus interface, the maximum transmission speed of 400KHz (working voltage of 5V)
o Can be cascaded with other IIC device, 24C32 addresses can be shorted A0/A1/A2 modify default address is 0x57
o With rechargeable battery LIR2032, to ensure the system after power failure, the clock move any natural normal
o Packing : single anti-static packaging
Wiring instructions (for Arduino uno r3 for example):
o SCL → A5
o SDA → A4
o VCC → 5V
o GND → GND
Tersedia pilihan tipe RTC berikut :
o RTC DIYMore DS3231SN AT24C32 IIC Precision Module Original
o RTC ElektronMart DS3231SN
o Chip RTC DS3231SN Philippines
o Chip RTC DS3231SN Thailand
o RTC Generik DS3231SN
o RTC Generik DS3231M
Extremely accurate I2C real-time clock (RTC), with an integrated temperature-compensated crystal oscillator (TCXO) and crystal. The device incorporates a battery input, disconnect the main power supply and maintains accurate timekeeping. Integrated oscillator improve long-term accuracy of the device and reduces the number of components of the production line. The DS3231SN is available in commercial and industrial temperature ranges, using a 16-pin 300mil SO package.
Specification :
o Size : 38mm (length) x 22mm (W) x 14mm (height)
o Weight : 8g
o Operating voltage : 3.3 - 5 .5 V
o Clock chip : High-precision clock chip DS3231SN
o Clock Accuracy : 0-40 ° range, the accuracy 2ppm, the error was about 1 minute
o Calendar alarm clock with two
o Programmable square-wave output
o Real time clock generator seconds, minutes, hours, day, date, month and year timing and provide valid until the year 2100 leap year compensation
o Chip temperature sensor comes with an accuracy of ± 3 °
o Memory chips : AT24C32 (storage capacity 32K)
o IIC bus interface, the maximum transmission speed of 400KHz (working voltage of 5V)
o Can be cascaded with other IIC device, 24C32 addresses can be shorted A0/A1/A2 modify default address is 0x57
o With rechargeable battery LIR2032, to ensure the system after power failure, the clock move any natural normal
o Packing : single anti-static packaging
Wiring instructions (for Arduino uno r3 for example):
o SCL → A5
o SDA → A4
o VCC → 5V
o GND → GND
