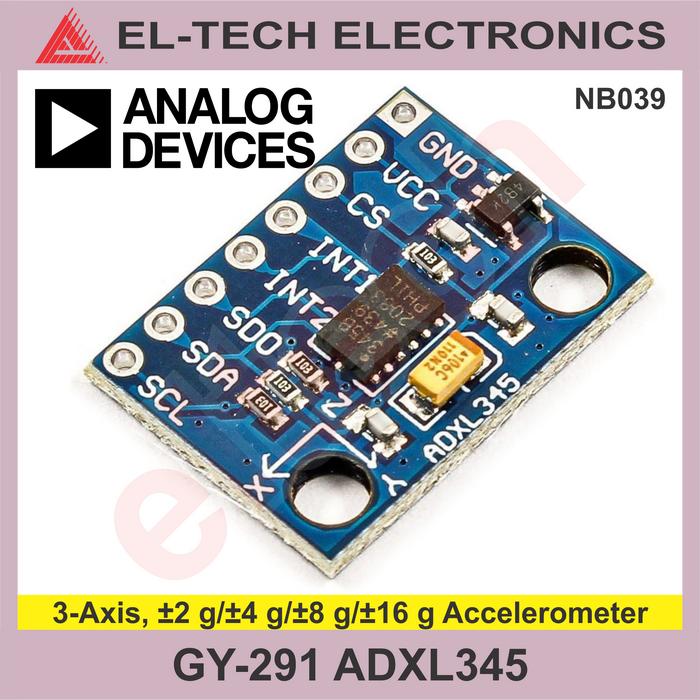

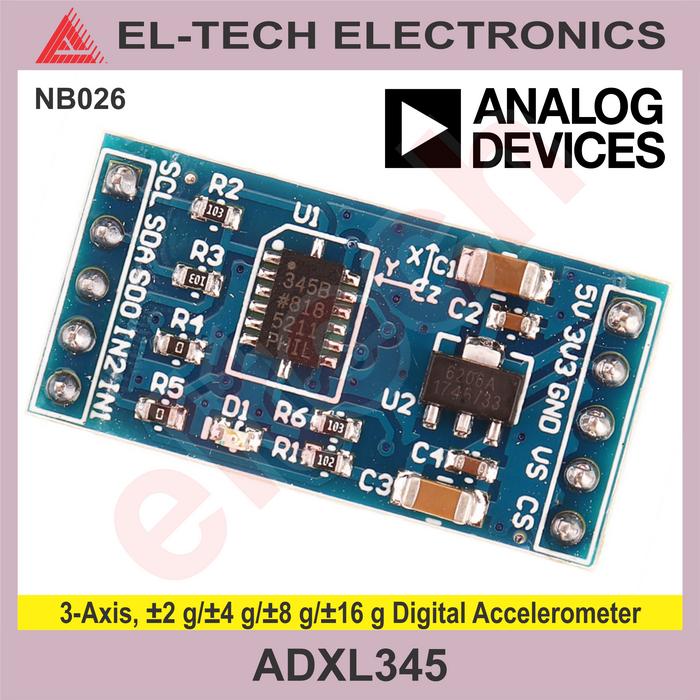

ADXL345 ADXL 345 3D Accelerator Acceleration Accelerometer Sensor - NB026

Barang, merk, kode sesuai foto ADXL345 3-Axis, ±2 g/±4 g/±8 g/±16 g Digital Accelerometer FEATURES: - Ultralow power: as low as 23 µA in measurement mode and 0.1 µA in standby mode at VS = 2.5 V (typical) - Power consumption scales automatically with bandwidth - User-selectable resolution Fixed 10-bit resolution Full resolution, where resolution increases with g range, up to 13-bit resolution at ±16 g (maintaining 4 mg/LSB scale factor in all g ranges) - Embedded memory management system with FIFO technology minimizes host processor load - Single tap/double tap detection - Activity/inactivity monitoring - Free-fall detection - Supply voltage range: 2.0 V to 3.6 V - I/O voltage range: 1.7 V to VS - SPI (3- and 4-wire) and I2C digital interfaces - Flexible interrupt modes mappable to either interrupt pin - Measurement ranges selectable via serial command - Bandwidth selectable via serial command - Wide temperature range (−40°C to +85°C) - 10,000 g shock survival - Pb free/RoHS compliant - Small and thin: 3 mm × 5 mm × 1 mm LGA package APPLICATIONS: - Handsets - Medical instrumentation - Gaming and pointing devices - Industrial instrumentation - Personal navigation devices - Hard disk drive (HDD) protection
