ARDUINO ATMEGA 2560 R3 MEGA 16U2 Compatible Board Module + USB Cable
Rp274.000
Pilih tipe: 2 tipe
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Modul Arduino ARM ESP Raspberry
Barang, merk, kode sesuai foto

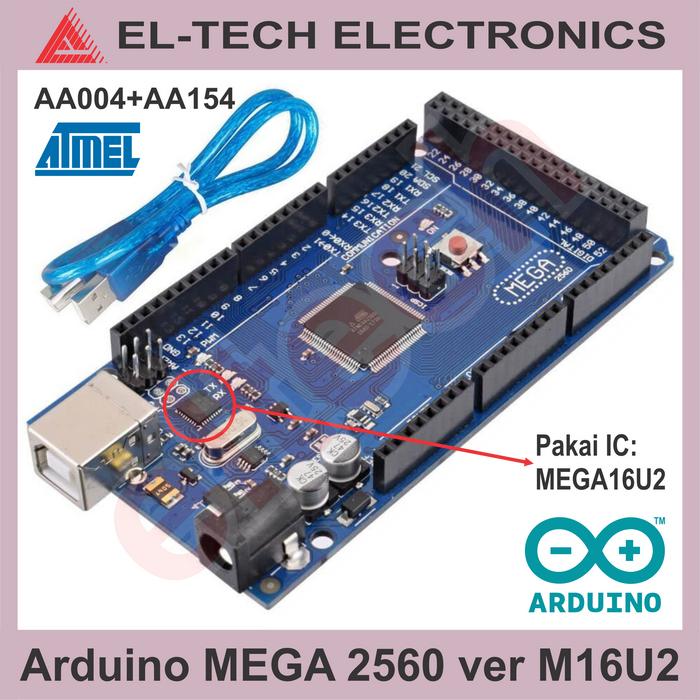

ARDUINO ATMEGA 2560 R3 ver. MEGA16U2

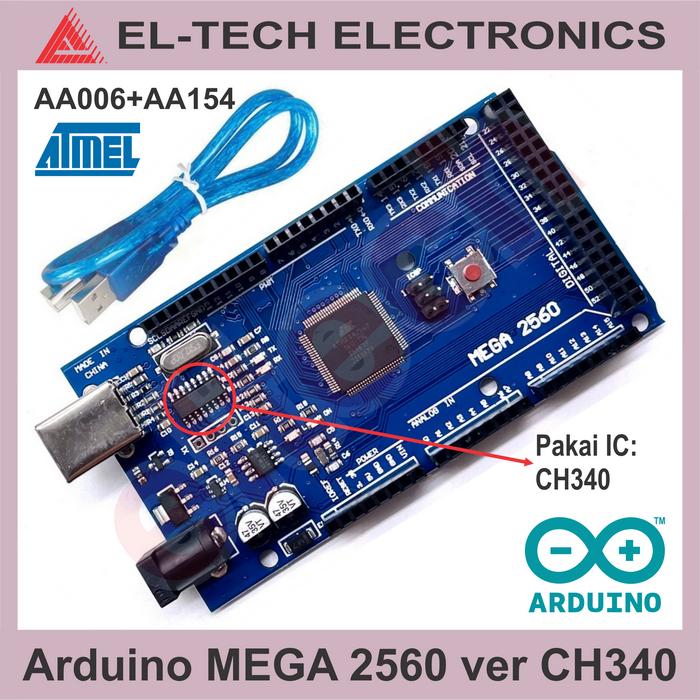

ARDUINO ATMEGA 2560 R3 ver. CH340
Specification:
- Microcontroller: ATmega2560
- USB to serial: MEGA16U2 atau CH340
- Operating Voltage: 5V
- Input Power (recommended): 7-12V, min 6V, max 20V
- Digital I/O Pins: 54 (of which 15 provide PWM output)
- Analog Input Pins: 16
- DC Current per I/O Pin: 20mA
- DC Current for 3.3V Pin: 50mA
- Flash Memory: 256KB of which 8KB used by bootloader
- SRAM: 8KB
- EEPROM: 4KB
- Clock Speed: 16MHz
- Length: 101.52mm
- Width: 53.3mm
- Weight: 37gr
ARDUINO ATMEGA 2560 R3 ver. MEGA16U2
ARDUINO ATMEGA 2560 R3 ver. CH340
Specification:
- Microcontroller: ATmega2560
- USB to serial: MEGA16U2 atau CH340
- Operating Voltage: 5V
- Input Power (recommended): 7-12V, min 6V, max 20V
- Digital I/O Pins: 54 (of which 15 provide PWM output)
- Analog Input Pins: 16
- DC Current per I/O Pin: 20mA
- DC Current for 3.3V Pin: 50mA
- Flash Memory: 256KB of which 8KB used by bootloader
- SRAM: 8KB
- EEPROM: 4KB
- Clock Speed: 16MHz
- Length: 101.52mm
- Width: 53.3mm
- Weight: 37gr
