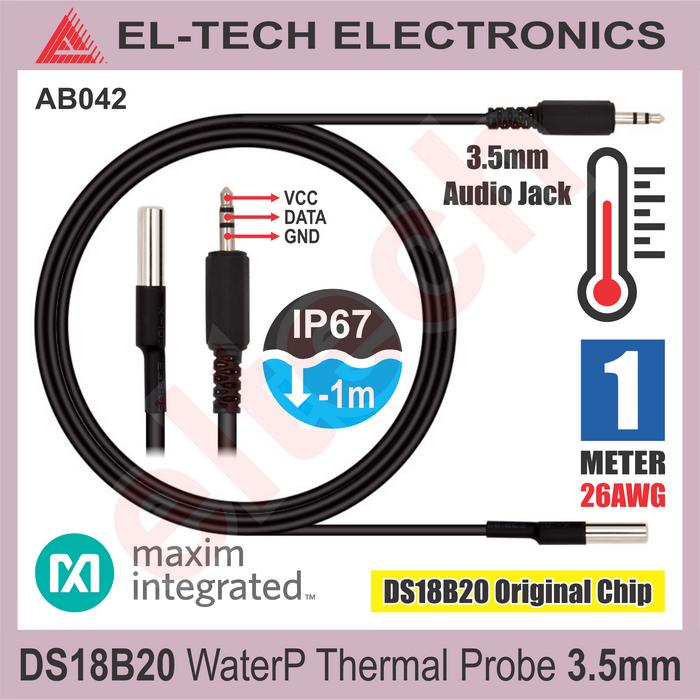

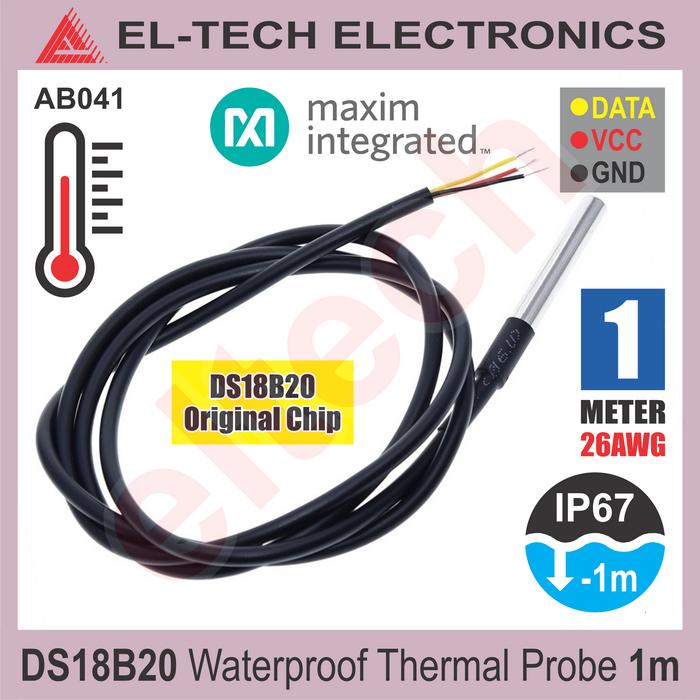

DS1820 DS 1820 DS18B20 18B20 Thermometer Temperature Probe Ukur Suhu - 1m 3.5mm ORI
Rp47.400
Pilih ukuran: 1m 3.5mm ORI
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Semua Etalase
Barang, merk, kode sesuai foto
DS18B20 Original Chip
DS18B20 Programmable Resolution 1-Wire Digital Thermometer
General Description:
The DS18B20 digital thermometer provides 9-bit to 12-bit Celsius temperature measurements and has an alarm function with nonvolatile user-programmable upper
and lower trigger points.
The DS18B20 communicates over a 1-Wire bus that by definition requires only one
data line (and ground) for communication with a central microprocessor.
In addition, the DS18B20 can derive power directly from the data line (“parasite power”), eliminating the need for an external power supply.
Each DS18B20 has a unique 64-bit serial code, which allows multiple DS18B20s to function on the same 1-Wire bus.
Thus, it is simple to use one microprocessor to control many DS18B20s distributed over a large area.
Applications that can benefit from this feature include HVAC environmental controls, temperature monitoring systems inside buildings, equipment, or machinery, and process monitoring and control systems.
Applications:
● Thermostatic Controls
● Industrial Systems
● Consumer Products
● Thermometers
● Thermally Sensitive Systems
Benefits and Features:
● Unique 1-Wire Interface Requires Only One Port Pin for Communication
● Reduce Component Count with Integrated
Temperature Sensor and EEPROM
• Measures Temperatures from -55°C to +125°C (-67°F to +257°F)
• ±0.5°C Accuracy from -10°C to +85°C
• Programmable Resolution from 9 Bits to 12 Bits
• No External Components Required
● Parasitic Power Mode Requires Only 2 Pins for Operation (DQ and GND)
● Simplifies Distributed Temperature-Sensing
Applications with Multidrop Capability
• Each Device Has a Unique 64-Bit Serial Code Stored in On-Board ROM
● Flexible User-Definable Nonvolatile (NV) Alarm Settings with Alarm Search Command Identifies Devices with Temperatures Outside Programmed Limits
● Available in 8-Pin SO (150 mils), 8-Pin µSOP, and 3-Pin TO-92 Packages
DS18B20 Original Chip
DS18B20 Programmable Resolution 1-Wire Digital Thermometer
General Description:
The DS18B20 digital thermometer provides 9-bit to 12-bit Celsius temperature measurements and has an alarm function with nonvolatile user-programmable upper
and lower trigger points.
The DS18B20 communicates over a 1-Wire bus that by definition requires only one
data line (and ground) for communication with a central microprocessor.
In addition, the DS18B20 can derive power directly from the data line (“parasite power”), eliminating the need for an external power supply.
Each DS18B20 has a unique 64-bit serial code, which allows multiple DS18B20s to function on the same 1-Wire bus.
Thus, it is simple to use one microprocessor to control many DS18B20s distributed over a large area.
Applications that can benefit from this feature include HVAC environmental controls, temperature monitoring systems inside buildings, equipment, or machinery, and process monitoring and control systems.
Applications:
● Thermostatic Controls
● Industrial Systems
● Consumer Products
● Thermometers
● Thermally Sensitive Systems
Benefits and Features:
● Unique 1-Wire Interface Requires Only One Port Pin for Communication
● Reduce Component Count with Integrated
Temperature Sensor and EEPROM
• Measures Temperatures from -55°C to +125°C (-67°F to +257°F)
• ±0.5°C Accuracy from -10°C to +85°C
• Programmable Resolution from 9 Bits to 12 Bits
• No External Components Required
● Parasitic Power Mode Requires Only 2 Pins for Operation (DQ and GND)
● Simplifies Distributed Temperature-Sensing
Applications with Multidrop Capability
• Each Device Has a Unique 64-Bit Serial Code Stored in On-Board ROM
● Flexible User-Definable Nonvolatile (NV) Alarm Settings with Alarm Search Command Identifies Devices with Temperatures Outside Programmed Limits
● Available in 8-Pin SO (150 mils), 8-Pin µSOP, and 3-Pin TO-92 Packages
