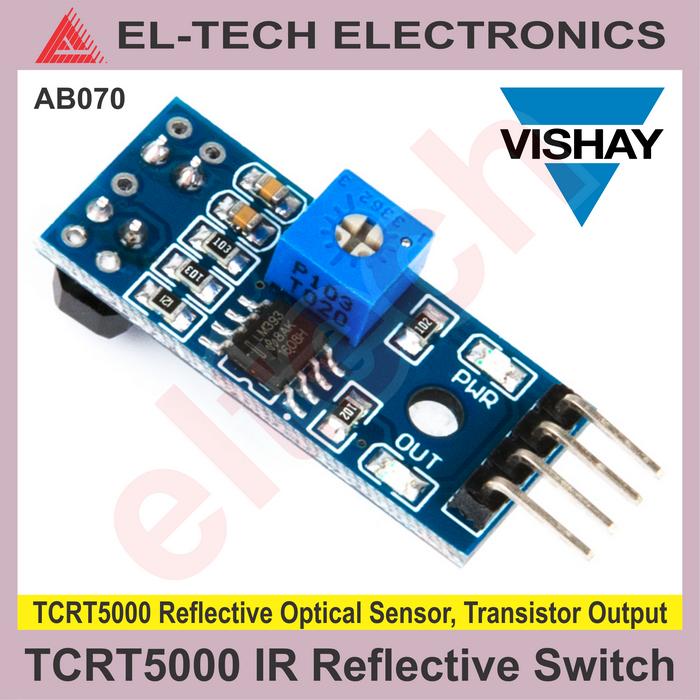

TCRT5000, TCRT5000L Reflective Optical Sensor with Transistor Output
DESCRIPTION: The TCRT5000 and TCRT5000L are reflective sensors which include an infrared emitter and phototransistor in a leaded package which blocks visible light. The package includes two mounting clips. TCRT5000L is the long lead version.
FEATURES: - Package type: leaded - Detector type: phototransistor - Dimensions (L x W x H ): 10.2 x 5.8 x 7 mm - Peak operating distance: 2.5 mm - Operating range within > 20 % relative collector current: 0.2 mm to 15 mm - Typical output current under test: IC = 1 mA - Daylight blocking filter - Emitter wavelength: 950 nm - Lead (Pb)-free soldering released - Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC
APPLICATIONS: - Position sensor for shaft encoder - Detection of reflective material such as paper, IBM cards, magnetic tapes etc. - Limit switch for mechanical motions in VCR - General purpose - wherever the space is limited
