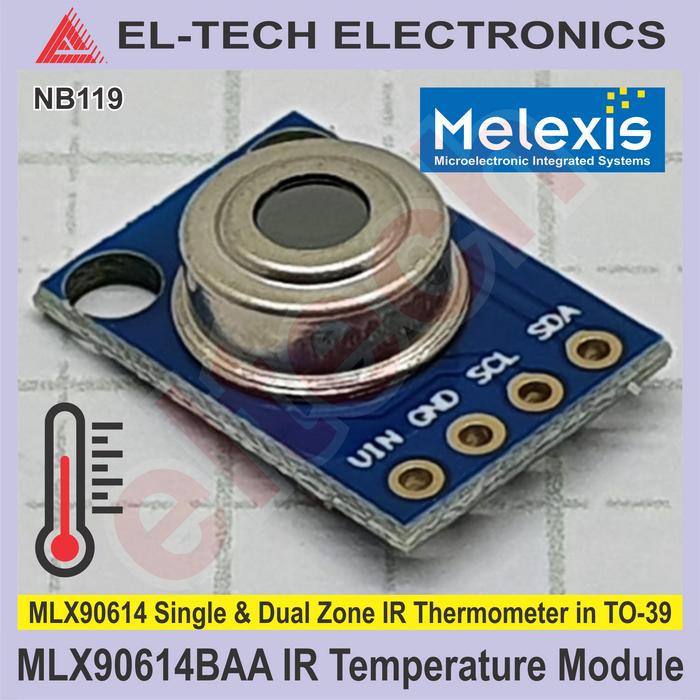

MLX90614ESF-BAA Module Sensor Suhu Infra Red Touchless Tanpa Sentuh - MLX90614 BAA

MLX90614ESF-BAA

Features and Benefits:
● Small size, low cost
● Easy to integrate
● Factory calibrated in wide temperature range:
-40…+125 °C for sensor temperature and
-70…+380 °C for object temperature.
● High accuracy of 0.5°C over wide temperature range (0..+50°C for both Ta and To)
● High (medical) accuracy calibration
● Measurement resolution of 0.02°C
● Single and dual zone versions
● SMBus compatible digital interface
● Customizable PWM output for continuous reading
● Available in 3V and 5V versions
● Simple adaptation for 8…16V applications
● Power saving mode
● Different package options for applications and measurements versatility
● Automotive grade

Applications Examples:
● High precision non-contact temperature measurements;
● Thermal Comfort sensor for Mobile Air Conditioning control system;
● Temperature sensing element for residential, commercial and industrial building air conditioning;
● Windshield defogging;
● Automotive blind angle detection;
● Industrial temperature control of moving parts;
● Temperature control in printers and copiers;
● Home appliances with temperature control;
● Healthcare;
● Livestock monitoring;
● Movement detection;
● Multiple zone temperature control – up to 100 sensors can be read via common 2 wires
● Thermal relay / alert
● Body temperature measurement

Cara membaca kode MLX90614ESF-BAA:

Sensor Temperature Code:
E (-40°C to 85°C)
K (-40°C to 125°C)

Package Code:
SF (TO-39)

Option Code
- X X X
(1) (2) (3)

(1) Supply Voltage/
Accuracy
A - 5V
B - 3V
C - Reserved
D - 3V medical accuracy

(2) Number of thermopiles:
A – single zone
B – dual zone
C – gradient compensated*

(3) Package options:
A – Standard package
B – Reserved
C – 35° FOV
F – 10° FOV

MLX90614ESF-BAA Sensor:
https://www.tokopedia.com/eltech-online/mlx90614esf-baa-sensor-suhu-infra-red-touchless-suhu-tanpa-sentuh

MLX90614ESF-BAA Module:
https://www.tokopedia.com/eltech-online/mlx90614esf-baa-module-sensor-suhu-infra-red-touchless-tanpa-sentuh

MLX90614ESF-BAA Module + Lensa:
https://www.tokopedia.com/eltech-online/mlx90614esf-baa-dci-module-sensor-infra-red-suhu-tanpa-sentuh-lensa
