12V
Atur jumlah dan catatan
Stok: Sisa 4
Subtotal
Rp33.500

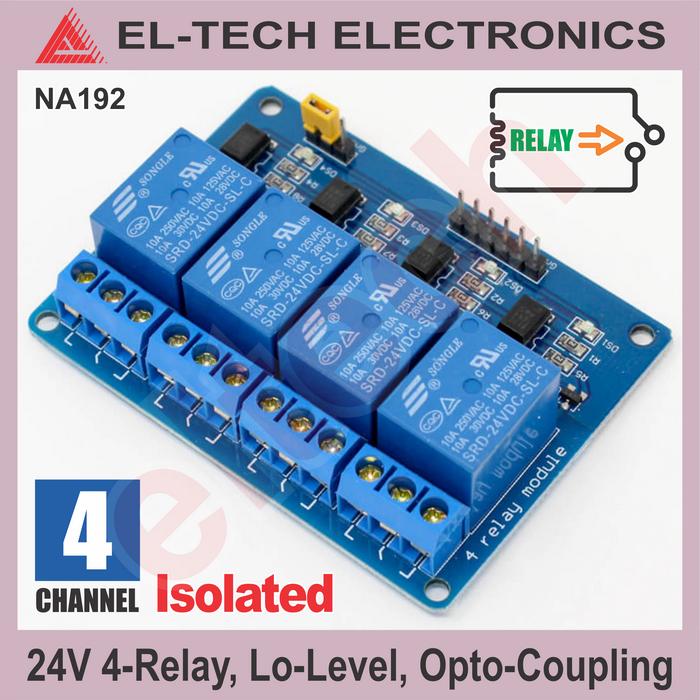

RELAY Modul Switch Isolated Opto Coupling 4 Channel 5V 12V 24V Arduino - 12V
Rp33.500
Pilih ukuran: 12V
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Switch Reed dan Relay dan Solenoid dan Keylock dan Keypad
Barang, merk, kode sesuai foto
Isolated Relay Module Board
Terminal Pin Description:
- Terminal VCC & GND:
- Power for Relay Coils
- Voltage: 5V, 12V, 24V depend on Relay Coil
- Current: ±70mA for 1-relay
- Terminal 5V & GND:
- Power for Optocouplers
- Voltage: 3.75 ~ 6V
- Current: 5mA for 1-optocoupler
- Terminal INPUT:
- Low input to activate the relay
- Relay Specifications:
- Contact Voltage: 250VAC, 30VDC
- Contact Current: max. 10A
Isolated Relay Module Board
Terminal Pin Description:
- Terminal VCC & GND:
- Power for Relay Coils
- Voltage: 5V, 12V, 24V depend on Relay Coil
- Current: ±70mA for 1-relay
- Terminal 5V & GND:
- Power for Optocouplers
- Voltage: 3.75 ~ 6V
- Current: 5mA for 1-optocoupler
- Terminal INPUT:
- Low input to activate the relay
- Relay Specifications:
- Contact Voltage: 250VAC, 30VDC
- Contact Current: max. 10A
