Speed Sensor Car Radar Measure Pengukur Ukur Kecepatan Kendaraan TSR20 - SPEED MONITOR

Barang dan spesifikasi sesuai foto

Untuk design dan permintaan khusus bisa hubungi WA 0855 30 50 100

TSR20 TRAFFIC SPEED RADAR (MULTI LANE)
Specification:
- Transmit frequency 24GHz
- Transmit power(EIRP) 20dBm
- Response time 20ms
- Transmit frequency error -45~40MHz
- Power 1.6W
- Communication interface RS484/RS232/WiFi/L/HH level
- Speed range 10~300km/h
- Speed accuracy -1~0km/h
- Direction Coming/going direction could be distinguish
- Distance range 15~150meters
- Distance accuracy ±0.5meter
- Beam width/TX Azimuth(-6dB)7deg
- Elevation (-6dB)28deg
- Working voltage 9~16V DC
- Working current 0.13A@12V DC
- Working temperature -40~85℃
- Working humidity 5%~95%RH
- Size 148*124.5*26.5mm
- Weight 484gr
- Protection class IP66

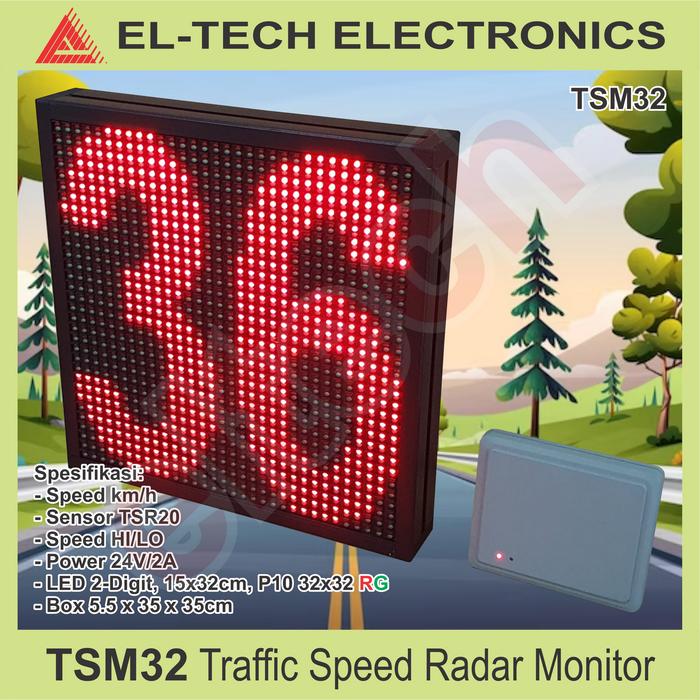

TSM32 SPEED MONITOR
Spesifikasi:
- Speed Range (km/h)
- Speed HI/LO
- Power 24V/2A
- Box Aluminium 5.5 x 35 x 35cm
- LED 2-Digit, 15x32cm, P10 32x32 RG
- Sensor TSR20
- Berat 3000gr
