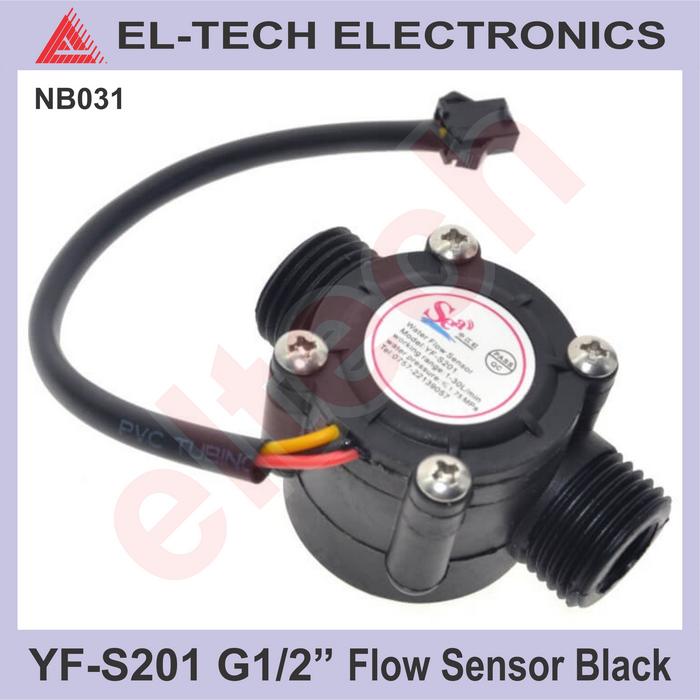

YF-S201 G1/2 1/2 Inch Water Flowmeter Meter Sensor Debit Aliran Air - Hitam
Rp59.000
Pilih warna: Hitam
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Modul Sensor
Barang, merk, kode sesuai foto
Water flow sensor (Sea) YF-S201 Flowmeter G1/2 1-30L/min
Description:
Water flow sensor consists of a plastic valve body, a water rotor, and a hall-effect sensor.
When water flows through the rotor, rotor rolls.
Its speed changes with different rate of flow.
The hall-effect sensor outputs the corresponding pulse signal.
This one is suitable to detect flow in water dispenser or coffee machine.
We have a comprehensive line of water flow sensors in different diameters.
Check them out to find the one that meets your need most.
Features:
- Compact, Easy to Install
- High Sealing Performance
- High Quality Hall Effect Sensor
- RoHS Compliant
Specifications:
- Working Voltage: 4.5~24VDC
- Working Current: 15mA (@5VDC)
- Flow Rate Range: 1~30L/min
- Load Capacity: <=10mA (@5VDC)
- Operating Temperature: <=80°C
- Liquid Temperature: <=120°C
- Operating Humidity: 35%~90%RH
- Water Pressure: <=1.75MPa
- Storage Temperature: -25~+ 80°C
- Storage Humidity: 25%~95%RH
Water flow sensor (Sea) YF-S201 Flowmeter G1/2 1-30L/min
Description:
Water flow sensor consists of a plastic valve body, a water rotor, and a hall-effect sensor.
When water flows through the rotor, rotor rolls.
Its speed changes with different rate of flow.
The hall-effect sensor outputs the corresponding pulse signal.
This one is suitable to detect flow in water dispenser or coffee machine.
We have a comprehensive line of water flow sensors in different diameters.
Check them out to find the one that meets your need most.
Features:
- Compact, Easy to Install
- High Sealing Performance
- High Quality Hall Effect Sensor
- RoHS Compliant
Specifications:
- Working Voltage: 4.5~24VDC
- Working Current: 15mA (@5VDC)
- Flow Rate Range: 1~30L/min
- Load Capacity: <=10mA (@5VDC)
- Operating Temperature: <=80°C
- Liquid Temperature: <=120°C
- Operating Humidity: 35%~90%RH
- Water Pressure: <=1.75MPa
- Storage Temperature: -25~+ 80°C
- Storage Humidity: 25%~95%RH
