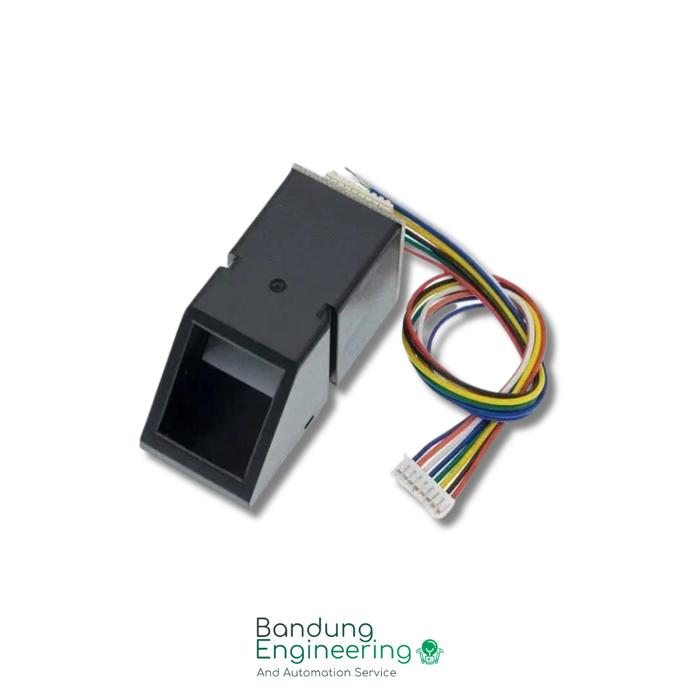

FINGERPRINT SENSOR RECOGNITION MODULE AS608 SIDIK JARI FOR ARDUINO

Fitur & Spesifikasi:
- Prosesor Synochip DSP AS606 120MHz
- Supply voltage: DC 5V
- Operating Current: 65mA
- Peak current: 95mA
- Fingerprint image time: 1 .0 seconds
- Window area: 14.5mm x 19.4 mm
- Signature File: 256 bytes
- Template files: 512 bytes
- Storage capacity: 162 (internal storage), 1000 (PC Application)
- False Accept Rate (FAR): 0 .001% (security level 3)
- False Reject Rate (FRR): 1 .0% (security level 3)
- Search time: 1 .0 seconds (1: 500 average)
- PC interface: UART (TTL logic level) tduino
- Baud rate (UART): (9600 x N)bps (N=1 - 12, N default 6, equal 57600bps)
- Lighting: Long light/Flashing (Green/Red/Blue Light)
- Dimensions (L x W xH): 56mm * 20mm * 20.5mm

Pinout:
- Kabel Merah = Vcc 5V
- Kabel Hitam = Ground
- Kabel Kuning= Serial TTL TX
- Kabel Putih = Serial TTL RX
- Kabel Hijau = Touch sensor output
- Kabel Biru = Touch sensor input (3,3V - 5V)

Aplikasi:
- Doorlock System
- Smarthome
- Mesin Absensi
- dll.
