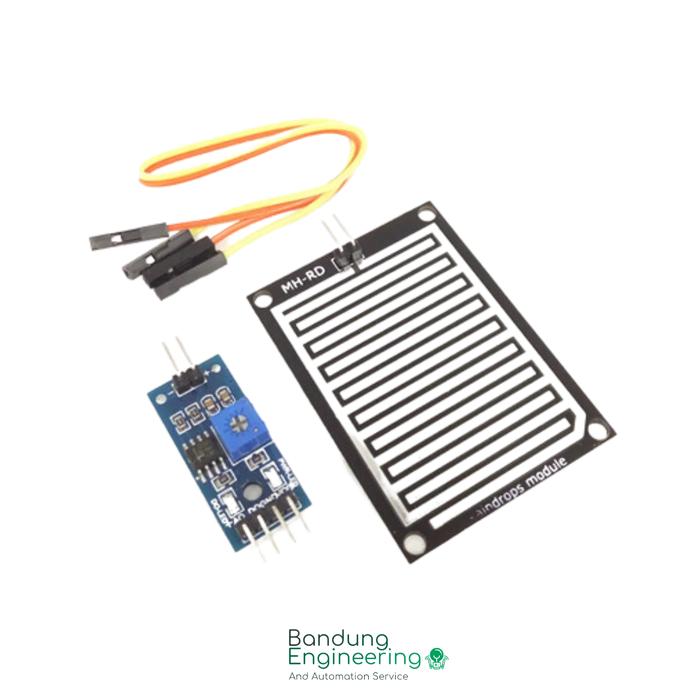

RAINDROPS RAIN HUMIDITY DETECTION SENSOR AIR HUJAN MODULE
Rp10.100
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: SID Perlengkapan Robotik dan Otomasi Industri
- Distribution bit to adjust sensitivity
- A fixed bolt hole for easy installation
- Power indicator, the output signal LED indicator
- The comparator output, the signal is clean, waveform, driving ability over 15mA
- Wide voltage LM393 comparator
- A large area of rain board, more conducive to detect rain
- Board with positioning holes to facilitate installation
- Raindrops and control panels are separate, easy to wire leads
Specification:
=================================
- Small board PCB size: 3.2cm x 1.4cm
- Operating voltage: 3.3V-5V
- Voltage: 5V
Connection mode:
=================================
- VCC: positive power supply (3-5V)
- GND: negative one.
- DO: TTL switching signal output
- AO: Analog signal output
- A fixed bolt hole for easy installation
- Power indicator, the output signal LED indicator
- The comparator output, the signal is clean, waveform, driving ability over 15mA
- Wide voltage LM393 comparator
- A large area of rain board, more conducive to detect rain
- Board with positioning holes to facilitate installation
- Raindrops and control panels are separate, easy to wire leads
Specification:
=================================
- Small board PCB size: 3.2cm x 1.4cm
- Operating voltage: 3.3V-5V
- Voltage: 5V
Connection mode:
=================================
- VCC: positive power supply (3-5V)
- GND: negative one.
- DO: TTL switching signal output
- AO: Analog signal output
