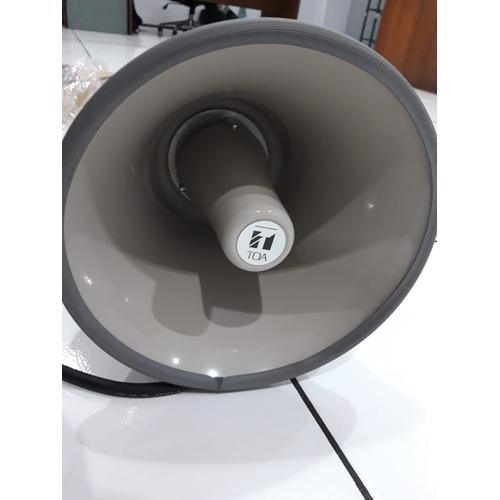

Toa Speaker Explosion Proof Horn Speaker TP-M15D

The TP-M15D Explosion-Proof Speaker provides added safety as to electrical operations, mechanical construction and temperature so as to prevent electrical equipment which do not generate sparks or heat that can ignite an explosive atmosphere under the condition of normal use from generating such sparks and heat.

Explosion-proof according to eG4 Standard (JIS-C0903)
Aluminium horn
Excellent frequency response
High sound pressure level
Mounting brackets are supplied for easy installation
Non-RoHS product
Rated Input 15 W
Rated Impedance 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)
Frequency Response 350 Hz - 4.5 kHz
Sensitivity 104 dB (1 W, 1 m)
Category eG4 (Increased safety explosion-proof)
Standard Environmental Condition Temperature: -20 ℃ to +40 ℃
Elevation: 1 km or less
Relative humidity: 45 % to 85 %
Others: Dust, corrosive gas or vibration which requires special considerations
Finish Horn: Ivory
Others: Dark brown
Bracket materials: Surface zinc treated steel plate (SECC, t3.2)
Dimensions φ242 × 368 (D) mm
Weight 5.5 kg
