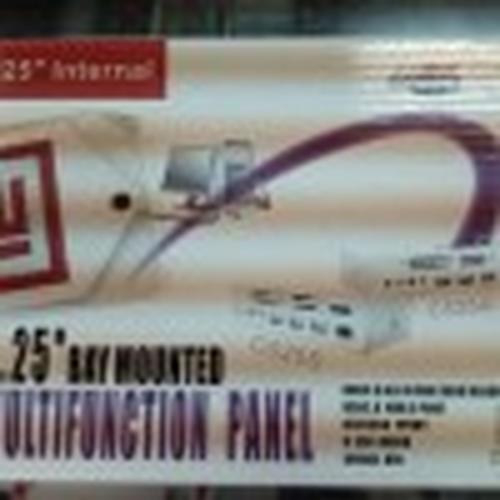

C525A is a 5.25" Multifunctional Front Panel offers you all for your PC combined with 5.1 sound card (6xchannel audio input and a microphone input), 3x High Speed 2.0 USB Hub, All in one card reader/writer and 1x IEEE 1394.
Interface : all in one card reader/writer, 3 USB 2.0 hub, 1 x 1394, and 5.1-channel sound card
The Panel gets connected from motherboard directly and comes with all the cables and screws and a user guide to complete installation
Support : USB 2.0 full speed specification and USB Device Class Definition for Mass Storage
Compatible with : WIN98SE,ME,2000,XP,VISTA,7 & MAC 0S 9.1
POWER and ACCESS LED indicators.
Data in inserted cards can be exchanged in different sockets and can read multiple cards at the same time
Warranty : 1 year
Features :
Card reader Fully compliant with USB2.0 specification,
Data transfer can be high-speed (480Mbps), full-speed (12Mbps) and low-speed (1.5Mbps) :
>Compact Flash (CF) v1.1/ v1.2 / v1.4
>Micro driver v1 / v2
>Secure Digital (SD) v1.0
>Multi Media Card (MMC) v1
>Multi Media Card (MMC) v2
>Memory Stick (MS) v1.3 Specification.
>Memory Stick PRO / Stick DUO / Stick ROM FORMAT.
>Smart Media Card (SMC) Standard 2000
USB Hub:
~Compliant with Universal Serial Bus Specification Revision 2.0 (Data Rate 1.5/12/480 Mbps)
~Certified by USB implementers forum and granted with USB 2.0 high-speed Logo
~High-speed or full-speed packet protocol sequencer for Endpoint 0/1
~3 downstream facing ports : can handle high-speed (480 Mbps), full-speed (12 Mbps), and low-speed (1.5Mbps) transaction.
~All the cable is plug with main - board audio connect or PCI sound card(6ch)
