Isotek Polaris power distribution power filter 6 outlet - EU Plug

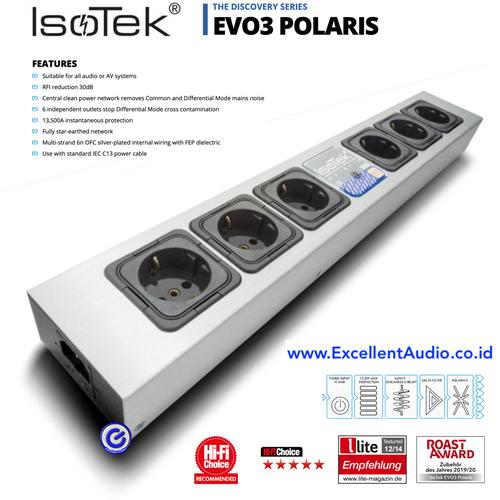

Isotek Polaris power distribution power filter 6 outlet

The EVO3 Polaris is a compact yet elegant power cleaning and distribution bar measuring 480mm in length, 80mm wide and just 45mm high. It features 6 independent outlets each one referencing back to the central PCB to dramatically reduce Differential Mode cross contamination of connected components. Most power filters of this style join output sockets together, running each in series. This is an error as Differential Mode Noise created by your connected electronics will cross contaminate from one output socket to the next. The electrical architecture and design of Polaris is superior.

The EVO3 Polaris has a unique delta filter topology ensuring class-leading power cleaning of both Common Mode and Differential Mode mains noise. Clean power is then delivered to its six output sockets – each one independently isolated to prevent cross-contamination of mains noise. The internal wiring is of the highest standard; pure 6n oxygen free copper conductor strands with silver-plating offering low resistance and high amperage. A PTFE dielectric is used to protect the conductors as well as giving the ultimate internal power delivering system. Furthermore, 13,500A of instantaneous protection is provided, safeguarding valuable equipment via IsoTek’s unique sequential and repeatable protection system.
The internal wiring of IsoTek products synergizes with the range of IsoTek power cables. One critical but overlooked area is maintaining commonality of design and material properties though an audio wiring loom, be it signal carrying cables or your power cable network.

NUMBER OF OUTLETS 6
MAINS INLET 10A IEC C14
MAINS VOLTAGE 100-240V / 50-60Hz
MAXIMUM CURRENT 10A HRC
TOTAL WATTAGE 2,300W (@230V) / 1,150W (@115V)
SURGE PROTECTION 13,500A
DIMENSIONS (W X H X D) 80 x 45 x 480mm
