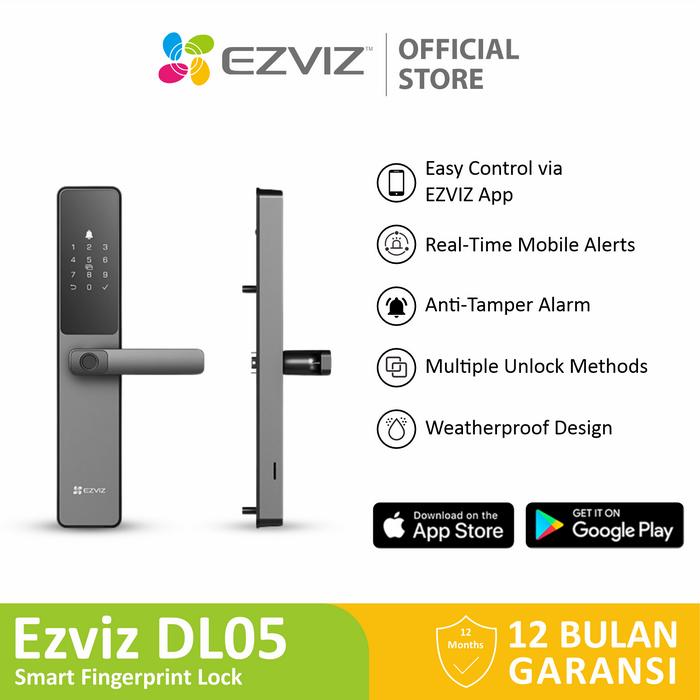

Ezviz DL05 Smart Home Security Fingerprint Door Handle Lock - DL05

Model: CS-DL05-R100-WBCP-GR(M)/CS-DL05-R200-WBCP-GR(M)

Panel Material: Aluminum alloy
Panel Size: 360 × 67 × 27 mm (14.17 × 2.64 × 1.06 inch)
Color: Metallic grey
Lock Body Type: Lift-up lock body
Lock Cylinder: 5085 / 6068
Weatherproof: IP65 (Front Panel)
Emergency Charging: Type-C
Working Power: 1.5V AA alkaline batteries x8

Unlocking Method: Fingerprint, passcode, proximity card, mechanical key, bluetooth key via EZVIZ App, temporary codes, remote unlock
User Capacity: 50 pcs
Fingerprint Capacity: 50 pcs
Passcode Capacity: 50 pcs
Card Capacity: 50 pcs
Communication Methods: 2.4GHz Wi-Fi, Bluetooth
Temporary Access Codes: Supports
Anti-Peeping Codes: Supports (Up to 20 digits)
Low Battery Warning: Supports
Privacy Mode: Supports
User Management: Supports
Real Time Notification: Supports
Anti-Test Locking: Supports
Anti-Tamper Alarm: Supports, enter error 5 times within 5 min, locking 3 min.
Remote Control: Supports
Child Safety Lock: Supports
Voice Control: Soon Supports (Google Assistant / Amazon Alexa)
Supported Door Thickness: 30-110 mm
Working Temperature: -25°C~70°C
Operating Humidity: 10%~95%

In the box:
- DL05 Smart Fingerprint Lock (Front Panel + Rear Panel + Hole Template)
- Lock Body
- Standard Screw Bag
- Lock Body Screw Bag (2)
- Locating Screw Bag
- Reversing Screw (2)
- AA-Sized Battery (8)
- Mechanical Key (2)
- Square Rod
- Proximity Card (2)
- Silicon Plug (For Rear Panel)
- Regulatory Information
- Quick Start Guide
