190W (10A) DC-DC step down module 24V to 19V converter
Rp450.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: DC-DC Converter
Ready stock (10pcs)

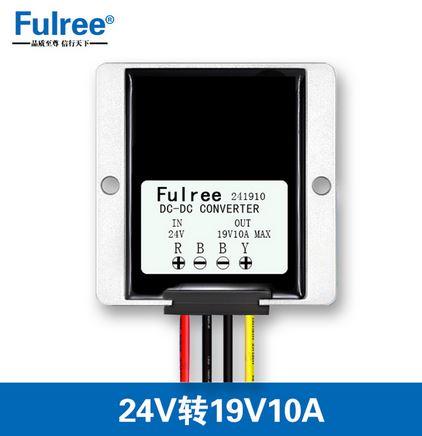

DC-DC 24V turn 19V 10A step-down module
This specific parameters of the power converter, please read
Full power, synchronous rectification, the main components imported brands
Efficient conversion rate: more than 93% power consumption 35MA
Ripple: 40MV, adapt to the environment temperature: -40 ~ + 85 industrial grade
Waterproof and shockproof, the use of heat silicone potting (better results than epoxy)!
Protection: Enter the high-voltage transient protection, output overcurrent protection, thermal protection chip.
Wiring is as follows:
Input IN: red (+) black (-), the output OUT: yellow line (+) black (-)
(Note: No reverse polarity without short-circuit protection, wiring carefully, otherwise the power supply may be damaged)
Power Model: XW-24-19-190W
Input voltage: DC 20-30V
Output voltage: DC 19V, output current: 10A, enough power 190W
Long-term recommendations within 10A load no problem
Volume Specifications: 74 * 74 * 32MM (L * W * H)
Weight: 280 g / a, aluminum shell package
DC-DC 24V turn 19V 10A step-down module
This specific parameters of the power converter, please read
Full power, synchronous rectification, the main components imported brands
Efficient conversion rate: more than 93% power consumption 35MA
Ripple: 40MV, adapt to the environment temperature: -40 ~ + 85 industrial grade
Waterproof and shockproof, the use of heat silicone potting (better results than epoxy)!
Protection: Enter the high-voltage transient protection, output overcurrent protection, thermal protection chip.
Wiring is as follows:
Input IN: red (+) black (-), the output OUT: yellow line (+) black (-)
(Note: No reverse polarity without short-circuit protection, wiring carefully, otherwise the power supply may be damaged)
Power Model: XW-24-19-190W
Input voltage: DC 20-30V
Output voltage: DC 19V, output current: 10A, enough power 190W
Long-term recommendations within 10A load no problem
Volume Specifications: 74 * 74 * 32MM (L * W * H)
Weight: 280 g / a, aluminum shell package
