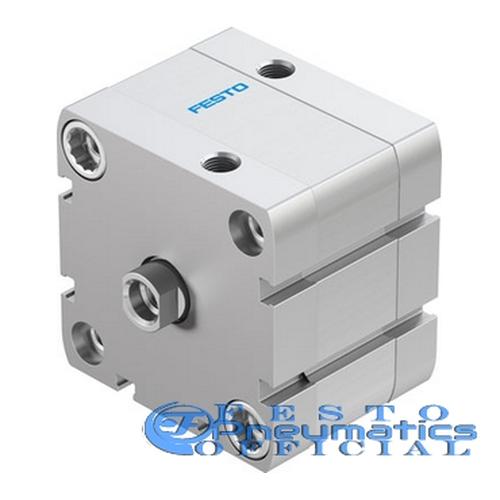

FESTO Compact cylinder ADN-63-10-I-P-A Part: 536342

Feature Value Shipping date View Stroke 10 mm Piston diameter 63 mm Piston rod thread M10 Cushioning P: Flexible cushioning rings/plates at both ends Assembly position Any Conforms to standard ISO 21287 Piston-rod end Female thread Position detection For proximity sensor Variants Single-ended piston rod Operating pressure MPa 0.06 ... 1 MPa Operating pressure 0.6 ... 10 bar Mode of operation double-acting Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4] Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation) Corrosion resistance classification CRC 2 - Moderate corrosion stress PWIS conformity VDMA24364-B1/B2-L Ambient temperature -20 ... 80 °C Impact energy in end positions 1.3 J Theoretical force at 0.6 MPa (6 bar, 87 psi), retracting 1,750 N Theoretical force at 0.6 MPa (6 bar, 87 psi), advance 1,870 N Moving mass with 0 mm stroke 180 g Additional mass factor per 10 mm of stroke 16 g Basic weight for 0 mm stroke 722 g Additional weight per 10 mm stroke 59 g Mounting type with through hole with internal (female) thread with accessories Optional Pneumatic connection G1/8 Materials note Conforms to RoHS Material cover Aluminium Anodised Material seals TPE-U(PUR) Material piston rod High alloy steel Material cylinder barrel Wrought Aluminium alloy Smooth anodised
