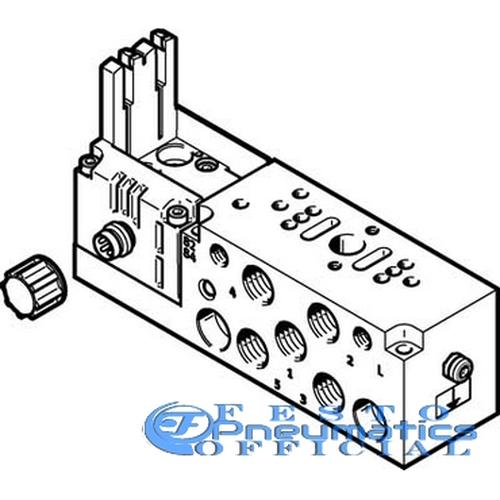

FESTO Sub-base VMPA2-IC-AP-1 Part: 537981

Feature Value Shipping date View Width 30.5 mm Length 107.3 mm Grid dimension 21 mm Operating pressure MPa 0.3 ... 0.8 MPa Operating pressure 3 ... 8 bar Pilot pressure MPa 0.3 ... 0.8 MPa Pilot pressure 3 ... 8 bar Authorisation c UL us - Recognized (OL) KC mark KC-EMV CE mark (see declaration of conformity) to EU directive for EMC in accordance with EU RoHS directive UKCA marking (see declaration of conformity) To UK instructions for EMC To UK RoHS instructions Corrosion resistance classification CRC 0 - No corrosion stress PWIS conformity VDMA24364-B1/B2-L Ambient temperature -5 ... 50 °C Product weight 233 g Electrical connection M8 Plug Mounting method for sub-base with through hole Pneumatic connection, port 1 G1/8 Pneumatic connection, port 2 G1/8 Pneumatic connection, port 3 G1/8 Pneumatic connection, port 4 G1/8 Pneumatic connection, port 5 G1/8 Materials note Conforms to RoHS Material of connecting plate Aluminium die cast
