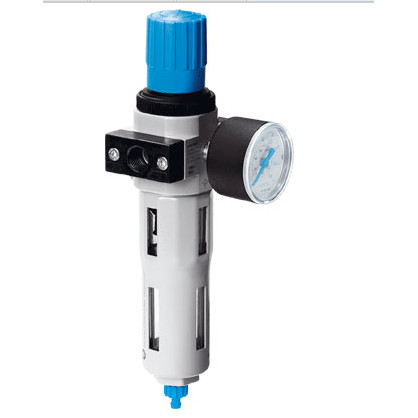

FESTO FILTER REGULATOR (LFR-1/4-D-MIDI-A) AUTO DRAIN

FESTO FILTER REGULATOR (LFR-1/4-D-MIDI-A) AUTO DRAIN Part number: 186484 Size Midi Series D Actuator lock Rotary knob with lock Assembly position Vertical +/- 5° Grade of filtration 40 µm Condensate drain fully automatic Design structure Filter regulator with pressure gauge Max. condensate volume 43 cm3 Bowl guard Metal bowl guard Pressure gauge with pressure gauge Operating pressure 2 ... 12 bar Pressure regulation range 0.5 ... 12 bar Max. pressure hysteresis 0.2 bar Standard nominal flow rate 2,000 l/min Maritime classification see certificate Operating medium Compressed air to ISO 8573-1:2010 [7:9:-] Inert gases Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation) Corrosion resistance classification CRC 2 - Moderate corrosion stress Storage temperature -10 ... 60 °C Air purity class at output Compressed air in accordance with ISO8573-1:2010 [7:8:4] Inert gases Medium temperature 5 ... 60 °C Ambient temperature 5 ... 60 °C Product weight 920 g Mounting type Optional Line installation with accessories Pneumatic connection, port 1 G1/4 Pneumatic connection, port 2 G1/4 Materials note Conforms to RoHS Material housing Zinc die-casting Material bowl PC
