Atur jumlah dan catatan
Stok: 51
Subtotal
Rp56.500

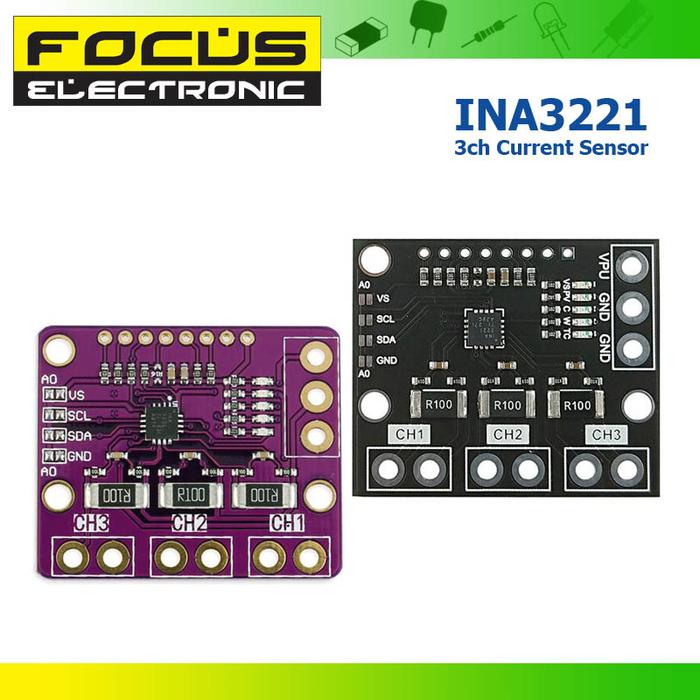

INA3221 I2C 3ch High Side DC Voltage Current Sensor INA 3221 3 channel - Ungu
Rp56.500
Pilih warna: Ungu
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Electronics and IoT
Perbedaan kedua modul:
+ Modul Ungu : Ke-3 channel sharing 1 Power yang sama (tidak bisa berbeda)
+ Modul Hitam : Setiap channel bisa menggunakan Power yang berbeda (tentunya bisa juga sharing 1 Power yang sama).
The INA3221 is a three-channel, high-side current and bus voltage monitor with an I2C- and SMBUS-compatible interface. The INA3221 monitors both shunt voltage drops and bus supply voltages, in addition to having programmable conversion times and averaging modes for these signals. The INA3221 offers both critical and warning alerts to detect multiple programmable out-of-range conditions for each channel.
The INA3221 senses current on buses that can vary from 0 V to 26 V. The device is powered from a single 2.7-V to 5.5-V supply, and draws 350 µA (typ) of supply current. The INA3221 is specified over the operating temperature range of –40°C to +125°C. The I2C- and SMBUS-compatible interface features four programmable addresses.
Features:
Senses Bus Voltages From 0 V to 26 V
Reports Shunt and Bus Voltage
High Accuracy:
Offset Voltage: ±80 µV (max)
Gain Error: 0.25% (max)
Configurable Averaging Options
Four Programmable Addresses
Programmable Alert and Warning Outputs
Power-Supply Operation: 2.7 - 5.5 V
Library : https://github.com/switchdoclabs/SDL_Arduino_INA3221
Video : https://www.youtube.com/watch?v=n9tnBJ0_Rxw
Tersedia juga Current Sensor 1 channel INA219 : https://www.tokopedia.com/focuscamerashop/ina219-i2c-interface-high-side-dc-voltage-current-sensor-ina-219
Arduino ESP32 ESP8266 STM23 replace INA219 current monitoring power monitoring
+ Modul Ungu : Ke-3 channel sharing 1 Power yang sama (tidak bisa berbeda)
+ Modul Hitam : Setiap channel bisa menggunakan Power yang berbeda (tentunya bisa juga sharing 1 Power yang sama).
The INA3221 is a three-channel, high-side current and bus voltage monitor with an I2C- and SMBUS-compatible interface. The INA3221 monitors both shunt voltage drops and bus supply voltages, in addition to having programmable conversion times and averaging modes for these signals. The INA3221 offers both critical and warning alerts to detect multiple programmable out-of-range conditions for each channel.
The INA3221 senses current on buses that can vary from 0 V to 26 V. The device is powered from a single 2.7-V to 5.5-V supply, and draws 350 µA (typ) of supply current. The INA3221 is specified over the operating temperature range of –40°C to +125°C. The I2C- and SMBUS-compatible interface features four programmable addresses.
Features:
Senses Bus Voltages From 0 V to 26 V
Reports Shunt and Bus Voltage
High Accuracy:
Offset Voltage: ±80 µV (max)
Gain Error: 0.25% (max)
Configurable Averaging Options
Four Programmable Addresses
Programmable Alert and Warning Outputs
Power-Supply Operation: 2.7 - 5.5 V
Library : https://github.com/switchdoclabs/SDL_Arduino_INA3221
Video : https://www.youtube.com/watch?v=n9tnBJ0_Rxw
Tersedia juga Current Sensor 1 channel INA219 : https://www.tokopedia.com/focuscamerashop/ina219-i2c-interface-high-side-dc-voltage-current-sensor-ina-219
Arduino ESP32 ESP8266 STM23 replace INA219 current monitoring power monitoring
