MAX7219 LED Dot Matrix 2 8x8 Blue 16x8 Running Text Display Arduino

Ingin buat running text atau Fancy display yang bisa dibuat animasi? MAX7219 LED Dot Matrix bisa Anda jadikan pilihan karena Anda tidak akan direpotkan lagi dengan solder puluhan pin LED. Anda juga tidak dipusingkan lagi dengan LED multiplexing. Anda hanya perlu 5 pin koneksi ke microcontroller.

Hebatnya lagi, modul ini dapat digabung untuk membentuk LED Matrix yang lebih besar.


Module parameters:
+ A single module can drive an 8*8 common negative dot matrix
+ Total pixel: 16 x 8 pixel
+ Dot Matrix LED color: Blue
+ Module working voltage: 5V
+ Communication: Serial SPI
+ Module size: 6.5 x 3.2 x 1.3 cm
+ 8 fixing screw holes, hole diameter 3mm
+ Module with input and output interface, support multiple modules cascade


Wiring instructions:
1. The left side of the module is the input port, and the right side is the output port.
2. When controlling a single module, only need to connect the input port to the CPU.
3. When multiple modules are cascaded, the input of the first module is connected to the CPU, the output is connected to the input of the second module, the output of the second module is connected to the input of the third module, and so on...


Aplikasi :
+ Mini Running Text
+ Display Jam Digital
+ Display Project
+ Papan Score
+ Papan Iklan
+ Display keterangan Meja Kantor


Paket:

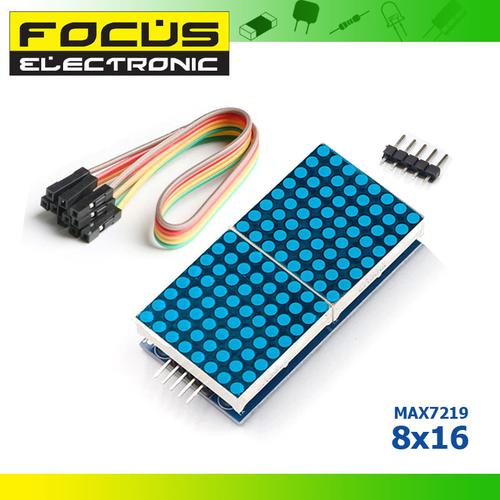

+ 1 pcs MAX7219 LED Dot Matrix 2 set Module
+ 4 pcs Female to Female Dupont Cable 20 CM
+ 1 pcs Male Header Siku 5p


Library & Tutorial:
https://www.makerguides.com/max7219-led-dot-matrix-display-arduino-tutorial/

Video:
https://www.youtube.com/watch?v=lcrQet0ga-k
https://www.youtube.com/watch?v=f3liBcyYYmE


Running Text Scrolling Text HT16K33 RGB ESP8266 ESP32 1088AS 8x16 2 in 1 Arduino ESP32 ESP8266 STM32
