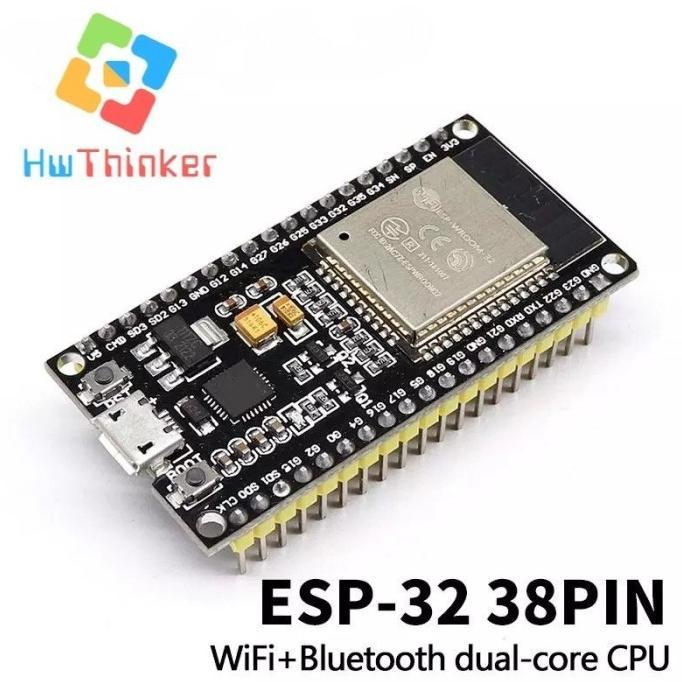

ESP32 ESP-32 38PIN WIFI+BLUETOOTH DUAL CORE DEVELOPMENT BOARD IOT - ESP32 38Pin

1. We serve better ESP32 is already integrated antenna and RF balun, power amplifier, low-noise amplifiers, filters, and power management module. The entire solution takes up the least amount of printed circuit board area. This board is used with 2.4 GHz dual-mode Wi-Fi and Bluetooth chips by TSMC 40nm low power technology, power and RF properties best, which is safe, reliable, and scalable to a variety of applications. Spesifikasi alat Jenis: Wifi + modul Bluetooth Model: ESP32 38 pin Tegangan listrik (USB): 5V DC Tegangan Input/Output: 3.3V DC CPU Utama: Tensilica Xtensa 32-bit LX6 Performa: Hingga 600 DMIPS Frekuensi: hingga 240Mhz Prosesor sekunder: memungkinkan pengoperasian dasar dalam mode konsumsi sangat rendah Wi-Fi: 802.11 b/g/n/e/i (802.11n @ 2,4 GHz hingga 150 Mbit/dtk) Bluetooth: 4.2 BR/EDR BLE mode kontrol ganda Memori: ROM 448 KByte, SRAM 520 KByte, SRAM 6 KByte pada RTC dan QSPI mendukung banyak chip flash / SRAM Flash: 4MB Chip USB-Serial: CH9102X Antena: PCB Konvesor analog digital: dua ADC tipe SAR 12bit, mendukung pengukuran hingga 18 saluran, beberapa pin mendukung amplifier dengan penguatan yang dapat diprogram Keamanan: IEEE 802.11, termasuk WFA, WPA/WPA2 dan WAPI Kriptografi yang dipercepat perangkat keras: AES, SHA-2, RSA, kriptografi kurva elips (ECC), penghasil angka acak (RNG) isi paket: varian ESP32 Saja 1x Board Microcontroller ESP32 tanpa asesoris lainnya
