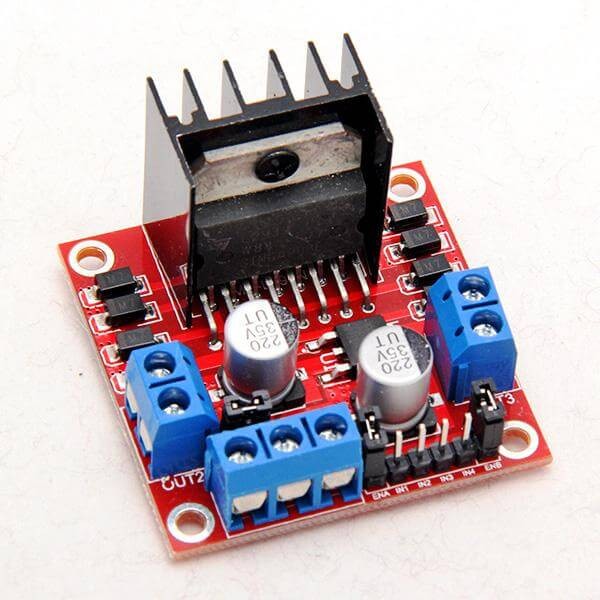

L298 Dual Channel Motor Driver
Rp65.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Converter
Product parameters:
1. Drive chip: L298N dual H-bridge DC motor driver chip
2. The drive portion of the terminal supply area Vs: + 5V ~ + 35V; such as the need to take power within the board, the power supply range Vs: + 7V ~ + 35V
3. Drive section peak current Io: 2A
The logical part of the terminal supply area Vss: + 5V ~ + 7V (can take power within the board + 5V)
5. The logical part of the operating current range: 0 ~ 36mA
6. Control signal input voltage range:
Low: -0.3V<=Vin<=1.5V
High: 2.3V<=Vin<=Vss
7. enable signal input voltage range:
Low: -0.3<=Vin<=1.5V (control signal is invalid)
High: 2.3V<=Vin<=Vss (control signal active)
8. Maximum power consumption: 20W (when the temperature T = 75 )
9. Storage temperature: -25 ~ + 130
10. The driver board size: 55mm * 49mm * 33mm (with fixed copper pillar and heat sink height)
11. The driver board Weight: 33g
12. Other expansion: control direction indicator, take electrical interface within the logic portion of the plate.
1. Drive chip: L298N dual H-bridge DC motor driver chip
2. The drive portion of the terminal supply area Vs: + 5V ~ + 35V; such as the need to take power within the board, the power supply range Vs: + 7V ~ + 35V
3. Drive section peak current Io: 2A
The logical part of the terminal supply area Vss: + 5V ~ + 7V (can take power within the board + 5V)
5. The logical part of the operating current range: 0 ~ 36mA
6. Control signal input voltage range:
Low: -0.3V<=Vin<=1.5V
High: 2.3V<=Vin<=Vss
7. enable signal input voltage range:
Low: -0.3<=Vin<=1.5V (control signal is invalid)
High: 2.3V<=Vin<=Vss (control signal active)
8. Maximum power consumption: 20W (when the temperature T = 75 )
9. Storage temperature: -25 ~ + 130
10. The driver board size: 55mm * 49mm * 33mm (with fixed copper pillar and heat sink height)
11. The driver board Weight: 33g
12. Other expansion: control direction indicator, take electrical interface within the logic portion of the plate.
