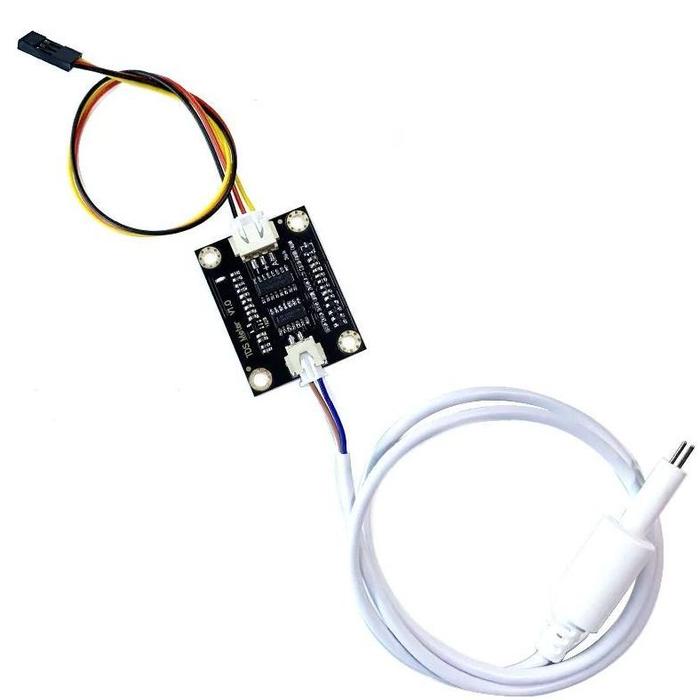

Analog TDS Meter Arduino Analog Tds Sensor Meter V1.0 Tds Arduino - white + black
Rp317.000
Pilih color: white + black
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: TDS Meter
- We provide various goods for you. You can follow us and see more.
- Orders max 12pm processed and dispatched same day.
【Description】
Signal adapter board:
-Input voltage: 3.3-5.5V
-Output signal: 0-2.3V
-Operating current: 3-6mA
-TDS measurement accuracy: +=10%F.S. (25℃)
-Size: 42*32mm
-Module interface: PH2.0-3P
-Electrode interface: XH2.54-2P
TDS probe:
-Number of probes: 2
-Overall length: 83cm
-Connection interface: XH2.54-2P
-Colour: Black
-Other: Waterproof probe
【Features】
- 0-3V analogue signal output, compatible with 5V,3.3V two control systems.
- Excitation source is AC signal, effectively prevent probe polarisation, waterproof probe, can be invaded into the water for a long time to measure.
- Arduino compatible, Gravity interface, simple wiring, plug and play, no need to solder.
Packing List:
1 x Analog TDS Sensor
Notes
1. Due to manual measurement, please allow 1-5mm error. Make sure you don't mind before bidding.
2. Due to the difference of different monitors, the picture may not reflect the actual color of the product. Thanks.
3. Please leaving a message before you give the bad feedback, if the products have some problems.
- Orders max 12pm processed and dispatched same day.
【Description】
Signal adapter board:
-Input voltage: 3.3-5.5V
-Output signal: 0-2.3V
-Operating current: 3-6mA
-TDS measurement accuracy: +=10%F.S. (25℃)
-Size: 42*32mm
-Module interface: PH2.0-3P
-Electrode interface: XH2.54-2P
TDS probe:
-Number of probes: 2
-Overall length: 83cm
-Connection interface: XH2.54-2P
-Colour: Black
-Other: Waterproof probe
【Features】
- 0-3V analogue signal output, compatible with 5V,3.3V two control systems.
- Excitation source is AC signal, effectively prevent probe polarisation, waterproof probe, can be invaded into the water for a long time to measure.
- Arduino compatible, Gravity interface, simple wiring, plug and play, no need to solder.
Packing List:
1 x Analog TDS Sensor
Notes
1. Due to manual measurement, please allow 1-5mm error. Make sure you don't mind before bidding.
2. Due to the difference of different monitors, the picture may not reflect the actual color of the product. Thanks.
3. Please leaving a message before you give the bad feedback, if the products have some problems.
