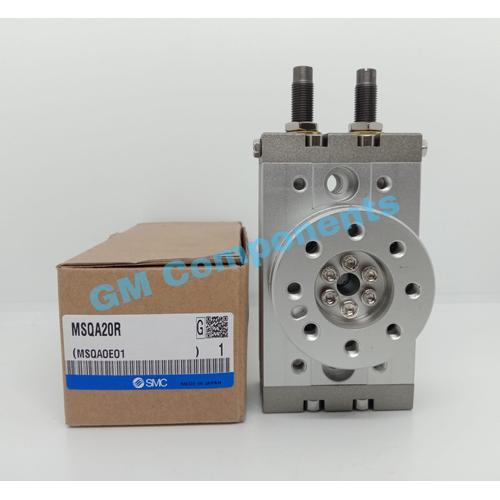

SMC MSQA10A, MSQA20A, MSQA30A, MSQA50A, MSQA10R, MSQA20R, MSQA30R, MSQA50R | ROTARY TABLE / RACK & PINION - MSQA10R

SMC MSQA10A, MSQA20A, MSQA30A, MSQA50A, MSQA10R, MSQA20R, MSQA30R, MSQA50R | ROTARY TABLE / RACK & PINION

High precision type
Size : 10, 20, 30, 50 mm

Port size :
*10, 20 : M5 x 0.8
*30, 50 : Rc 1/8

Cushion :
*A : With adjusment bolt
*R : With internal shock absorber

Fluid : Air (non-lube)
Operating pressure :
*10A : 0.2 to 1 MPa
*20A, 30A, 50A : 0.1 to 1 MPa
*10R : 0.2 to 0.6 MPa
*20R, 30R, 50R : 0.1 to 0.6 MPa

Ambient and fluid temperature : 0 to 60°C
Angle adjusment range : 0 to 190°

Cushion :
*With adjusment bolt : Rubber bumper
*With internal shock absorber : Shock absorber

Max. rotation : 190°
Cylinder bore size :
*MSQA10 : ø 15
*MSQA20 : ø 18
*MSQA30 : ø 21
*MSQA50 : ø 25


Note : Harap tanyakan ketersediaan stock terlebih dulu sebelum order

Barang original SMC, harga yang tertera untuk perpcs/satuan.

Untuk ketersediaan stock dan type barang yang belum ada di etalase atau info lebih lanjut dapat menghubungi nomor WhatsApp 082388304549 atau 082268699506, Terima kasih
