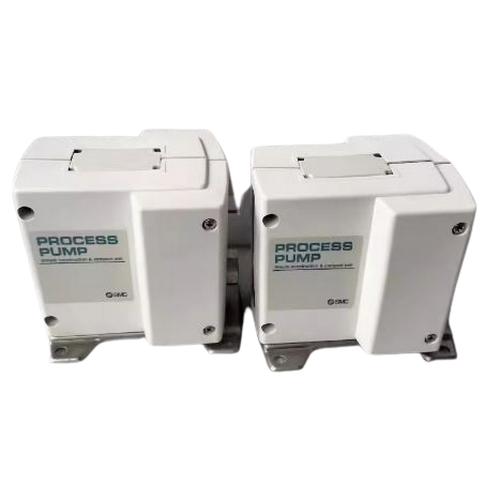

SMC PA5110-04, PA5210-04, PA5210-06, PA5210-04-N, PA5210-N04, PA5210-F04 | PROCESS PUMP - PA5110-04

SMC PA5110-04, PA5210-04, PA5210-06, PA5210-04-N, PA5210-N04, PA5210-F04 | PROCESS PUMP

Material of body wetted areas :
*5110 : ADC12 (Aluminium)
*5210 : SCS14 (Stainless steel )

Diaphragm material :
*5110 : PTFE
*5210 : NBR
Actuation : 0 [Automatically operated]

Port size :
*N04 : NPT 1/2
*F04 : G 1/2
*04 : Rc 1/2
*06 : Rc 3/4

Option :
*Nill : Body Only
*N : With silencer

Discharge rate : 5 to 45 L/min
Avarage discarge pressure : 0 to 0.6 MPa
Pilot air pressure : 0.2 to 0.7 MPa
Air consumption : 300 L/min (ANR)

Suction lifting range : PA5110, PA5210
*Dry : 2 m (interior of pump dry)
*Wet : 6 m (liquid inside pump)

Noise : 78 dB(A)
Withstand pressure : 1.05 MPa
Diaphragm life : 50 million times
Ambient and fluid temperature : 0 to 60 °C (No freezing)
Maximum viscosity : 1000 mPa.s
Recommended operating cycle : -


Note : Harap tanyakan keteresediaan stock terlebih dulu sebelum order

Barang original, harga yang tertera untuk perpcs/satuan

Untuk ketersediaan stock dan type barang yang belum ada di etalase atau info lebih lanjut dapat menghubungi nomor WhatsApp 082388304549 atau 082268699506, Terima kasih
