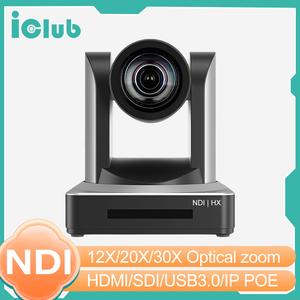

NDI PTZ Camera 12 20 30X Zoom Live Streaming PoE Camera with Simultaneous HDMI and 3G-SDI USB Outputs IP Camera for Church

Welcome To Our Store
Kami Adalah Sumber Tangan Pertama, Penjualan Skala Besar, Harga Eceran Sama Dengan Harga Grosir. Semua barang adalah barang impor, tanyakan persediaan sebelum membeli

Brand Name : iclub
Model Number : RP-HD510
Origin : Mainland China
Optical Zoom : > 6x
Sensor Size (inches) : 1/2.3inches
of Axes : 2-Axis
Movies File Formats : H,265,H264
Video Resolution : Full HD (1920x1080)
Communication : Wired
Memory Card Type : 126
Hign-concerned Chemical : None


NDI|HX

NDI can transmit and receive broadcast-level quality signals in real-time through IP network at very low delay.License approved by Newtek Inc, with a single Ethernet cable, you can power, control, set up and preview this PTZ conference camera. Compatible with vMix, OBS, Zoom, Skype and other software which supports NDI HX.Support PoE(802.3af), ONVIF, GB/T28181, RTSP, RTMP and other technologies,ability to support advanced features for live streaming.

Multi-Zoom Lens Available

12X, 20X, 30X optical zoom lens available. Applicable to the needs of various occasions like church/worship, broadcast, education, events, conference

PoE (802.3af)

PoE(Power over Ethernet)can simplify wiring to save costs. Just one network cable can transmit data and power cameras within 100 meters simultaneously

Full HD 1080P + Low Noise

It supports H.265 and H.264. Compared with H.264, the H.265 standard can improve code stream and encoding quality, and reduce delay.

Our HDMI POE camera employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 60fps.Simultaneous 3G-SDI, HDMI, IP/NDI video output.Support H.264/H.265 video compression, high SNR CMOS combined with 2D &3D noise reduction, the video is clean even under low light conditions.Widely used in Distance Education,Lecture Capture, Church Live, Video Conferencing, Tele-medicine and Emergency Command systems.

Multiple Video Output Interfaces

Support HDMI, SDI.USB ,IP , SDI supports to transmit 100 meters under the 1080P@60fps format.

Extremely Quiet PTZ

Built-in two-way silent pan/tilt, the lens can rotate 340 (170) horizontally and 120 vertically (-30+90).

Support 255 preset positions (the remote controller is set to 10preset positions).

Multi-application Compatibility

Compatible with most video applications, including Zoom, Skype, Polycom, Microsoft Lync, Cisco, WebEx, BlueJeans, Facebook Messenger, and more. Support Windows 7, Windows 8, Windows 10, Mac Osx, Linux and other operating systems.

Technical Specification

Model

5X

10X

12X

20X

30X

Camera Parameter

Sensor

1/2.8 inch high quality HD CMOS sensor

Effective Pixels

16: 9 2.07 megapixel

Video Format

HDMI/SDI/USB/LAN

video format

1080P60/50/30/25/59.94/29.97;1080I60/50/59.94;720P60/50/30/25/59.94/29.97

U3 interface video format

1)U3:1920X1080P60/50/30/25;1280X720P60/50/30/25;960X540P30;640X360P30;640X480P30;352X288P30;960X540P30;

2)U3 compatible with U2:960X540P30; 640X360P30; 1280X720P10/15; 720X576P50; 720X480P60; 640X480P30; 352X288P30.

U2 interface video format

176x144/320x240/320x180/352x288/640x480/720x576/640x360/800X600/960X540/1024X576/1024X768/1600X896/1920X1080/1280X720P30/25/20/15/10/5

Optical Zoom

5X

f3.618mm

10X

f4.747mm

12X

f3.946.1mm

20X

f5.
5

110
mm

30X

f4.3129mm

View Angle

16.43tele 80.9wide

6.43tele 60.9wide

6.3tele

72.5wide

3.
3
tele

5
4.7
wide

2.34

(
tele
)
--
65.1


(
wide
)

AV

F1.6 F3.0

F1.6 F3.0

F1.8 F2.4

F1.
6
F3.
5

F1.6 F
4.7

Digital Zoom

10X

Minimum Illumination

0.5Lux(F1.8, AGC ON)

DNR

2D & 3D DNR

White Balance

Auto / Manual/ One Push/3000K/4000K/5000K/6500K

Focus

Auto/Manual

Aperture

Auto/Manual

Electronic Shutter

Auto/Manual

BLC

ON/OFF

WDR

OFF/ Dynamic level adjustment

Video adjustment

Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve

SNR

>55dB

Input/Output Interface

Video Interfaces

UV510A-05/10/12/20
/30
-ST ModelHDMI, 3G-SDI, LAN, Audio-in

UV510A-05/10/12/20
/30
-U2U3ModelUSB2.0, USB3.0, HDMI, LAN, RS232input

Image code stream

Double streams outputs simultaneously

Video Compression format

H.264, H.265

ControlSignalInterface

RS-232Ring through RS232 output, RS-485

Control Protocol

VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps

Audio input Interface

Double track 3.5mm linear input;

Audio Compression Format

AAC/MP3/PMC Audio compression

HD IP Interface

100M IP port(100BASE-TX); 5G WiFi (optional), support IP Visca control protocol

Network Protocol

RTSP/RTMP,ONVIF

Power Interface

HEC3800 outlet (DC12V)

PTZ Parameter

Pan Rotation

170

Tilt Rotation

-30+90

Pan Control Speed

0.1 -180/sec

Tilt Control Speed

0.1-80/sec

Preset Speed

Pan: 60/sec, Tilt: 30/sec

Preset Number

255 presets(10 presets by remote controller)

Other Parameter

Supply Adapter

AC110V-AC220V to DC12V/2A

Input Voltage

DC12V10%

Input Current

1A(Max)

Consumption

12W(Max)

Store Temperature

-10 to +60

Store Humidity

20

WorkingTemperature

-10
