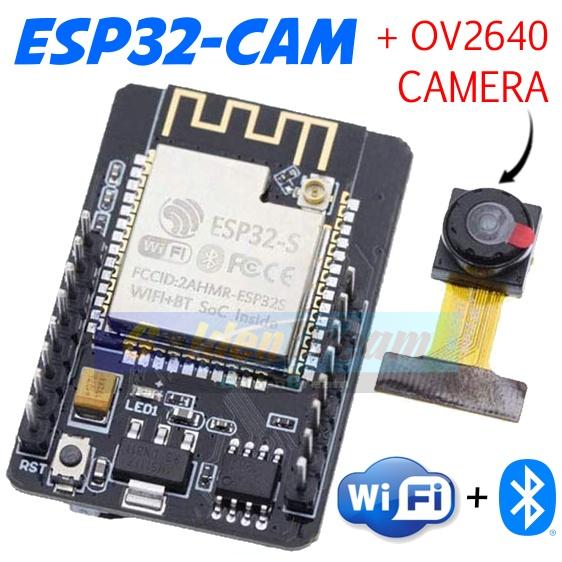

ESP32 Cam OV2640 Camera Wifi Bluetooth Arduino ESP32S Kamera ESP-32 - Set ESP32 + CAM
Rp81.100
Pilih kelengkapan: Set ESP32 + CAM
Stok varian ini habis. Simpan di Wishlist untuk diingatkan ketika barang kembali tersedia.
Modul teknis hanya bagi yang mahir, paket ESP32 + Camera OV2640
The ESP32CAM is a tiny module based on ESP32 chip and OV2640. You can even program the ESP32CAM through the ESP-IDF by installing the ESP32 Core.
The ESP32CAM equips the ESP32 with everything necessary to program, run and develop on the wonderchip. It also features a LiPo charger (IP5306), so your ESP32CAM project can be battery-powered and truly wireless. Additionally, the board reserved the MPU6050,BME280 and an analog MIC.
Using low-power Dual-Core 32-bit CPU, as an application processor
The main frequency is up to 240MHz, and the computing power is up to 600 DMIPS
Built-in 520 KB SRAM, external 4M PSRAM
Support UART/SPI/I2C/PWM/ADC/DAC and other interfaces
Support OV2640 and OV7670 cameras, built-in flash
Support picture WiFi upload
Support TF card
Support multiple sleep modes
Embedded Lwip and FreeRTOS
Support STA/AP/STA+AP working mode
Support Smart Config/AirKiss one-click network configuration
Support secondary development
**Spesifikasi:
Dual-core Tensilica LX6 microprocessor
Up to 240MHz clock frequency
520kB internal SRAM
4MB Flash memory
Integrated 802.11 BGN WiFi transceiver
Integrated dual-mode Bluetooth (classic and BLE)
Hardware accelerated encryption (AES, SHA2, ECC, RSA-4096)
CP2104 USB TTL
OV2640 sensor
Output Formats(8-bit):
YUV(422/420)/YCbCr422
RGB565/555
8-bit compressed data
8-/10-bit Raw RGB data
Maximum Image Transfer Rate
UXGA/SXGA: 15fps
SVGA: 30fps
CIF: 60fps
Scan Mode: Progressive
Camera specifications
CCD size: 1/4inch
Field of View: 78 degree
Maxmium Pixel: 200W
Sensor best resolution: 1600 * 1200
Dimension: 25mm x 24mm
Weight: 5g
**KESALAHAN yang sering terjadi :
(1) user tidak memasang jumper ke GND untuk mengubah mode kerja ESP32 sehingga gagal upload.
(2) user tidak menekan tombol RESET saat Arduino IDE selesai upload, dan meminta ada HARD RESET
The ESP32CAM is a tiny module based on ESP32 chip and OV2640. You can even program the ESP32CAM through the ESP-IDF by installing the ESP32 Core.
The ESP32CAM equips the ESP32 with everything necessary to program, run and develop on the wonderchip. It also features a LiPo charger (IP5306), so your ESP32CAM project can be battery-powered and truly wireless. Additionally, the board reserved the MPU6050,BME280 and an analog MIC.
Using low-power Dual-Core 32-bit CPU, as an application processor
The main frequency is up to 240MHz, and the computing power is up to 600 DMIPS
Built-in 520 KB SRAM, external 4M PSRAM
Support UART/SPI/I2C/PWM/ADC/DAC and other interfaces
Support OV2640 and OV7670 cameras, built-in flash
Support picture WiFi upload
Support TF card
Support multiple sleep modes
Embedded Lwip and FreeRTOS
Support STA/AP/STA+AP working mode
Support Smart Config/AirKiss one-click network configuration
Support secondary development
**Spesifikasi:
Dual-core Tensilica LX6 microprocessor
Up to 240MHz clock frequency
520kB internal SRAM
4MB Flash memory
Integrated 802.11 BGN WiFi transceiver
Integrated dual-mode Bluetooth (classic and BLE)
Hardware accelerated encryption (AES, SHA2, ECC, RSA-4096)
CP2104 USB TTL
OV2640 sensor
Output Formats(8-bit):
YUV(422/420)/YCbCr422
RGB565/555
8-bit compressed data
8-/10-bit Raw RGB data
Maximum Image Transfer Rate
UXGA/SXGA: 15fps
SVGA: 30fps
CIF: 60fps
Scan Mode: Progressive
Camera specifications
CCD size: 1/4inch
Field of View: 78 degree
Maxmium Pixel: 200W
Sensor best resolution: 1600 * 1200
Dimension: 25mm x 24mm
Weight: 5g
**KESALAHAN yang sering terjadi :
(1) user tidak memasang jumper ke GND untuk mengubah mode kerja ESP32 sehingga gagal upload.
(2) user tidak menekan tombol RESET saat Arduino IDE selesai upload, dan meminta ada HARD RESET
