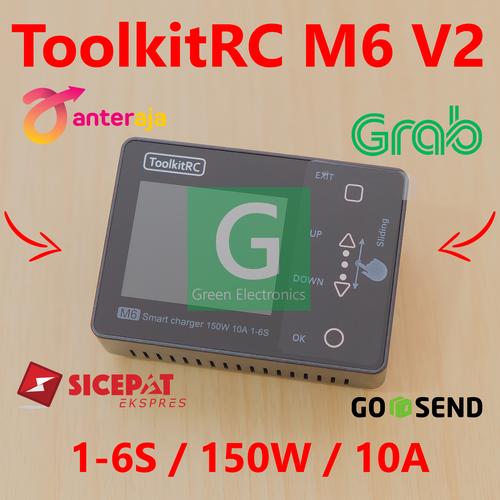

ToolkitRC M6 Smart Balance Charger 10A 150W 6S Lipo Checker Tester

FREE PACKING KARDUS TANPA TAMBAHAN BIAYA 😎

V2 UPGRADED CELL BALANCING ACCURACY UP TO ± 5mV / 0.005V 😎

SEBELUM DIKIRIM BARANG AKAN KAMI TES NYALA & INSPEKSI FISIK 😎

HARAP DIPERHATIKAN INI HANYA CHARGER SAJA. MASIH BUTUH PSU / ADAPTOR UNTUK DAPAT BERFUNGSI 😎

Charger tipe lain dan adaptor dapat dilihat pada etalase berikut:
https://www.tokopedia.com/greenelectronics/etalase/battery-charger

User Manual & Update Firmware:
toolkitrc [dot] com/m6
*KEGAGALAN DALAM UPDATE FIRMWARE BUKAN TANGGUNG JAWAB KAMI. DO AT YOUR OWN RISK*

Charger Specification:
- Input voltage: 7.0-28.0V @MAX 12A
- Type of battery: Lipo/LiHV/LiFe @1-6S & NiMh @1-16S & Pb @1-10S
- Balance current: 400mA @2-6S
- Charger power: 150W @MAX 10A
- Discharge power: 150W @MAX 10A (Recycle Mode) / 8W @MAX 2A (Normal Mode)
- USB: 2.1A @5.0V or Firmware Upgrade

Measurement Specification:
- PWM: 880-2200us @20-400Hz
- PPM: 880-2200us*8CH @20-50Hz
- SBUS: 880-2200us*16CH @20-100Hz
- Voltage: 1.0-5.0V @1-6S
- Internal resistance: 10-100mR @1-6S

Output Specification:
- PWM: 500-2500us @20-1000Hz
- PPM: 880-2200us*8CH @20-50Hz
- SBUS: 880-2200us*16CH @20-100Hz
- Power Supply Voltage: 1.0-28.0V
- Power Supply Current: 1.0-10A
- Power Supply Mode: CC+CV
- Over Current Cut-Off Time: 50ms

Physical Specification:
- Dimensions: 70*50*26 mm
- Weight: 80g
- TFT LCD: 1.8 inch / 160*128 pixel
