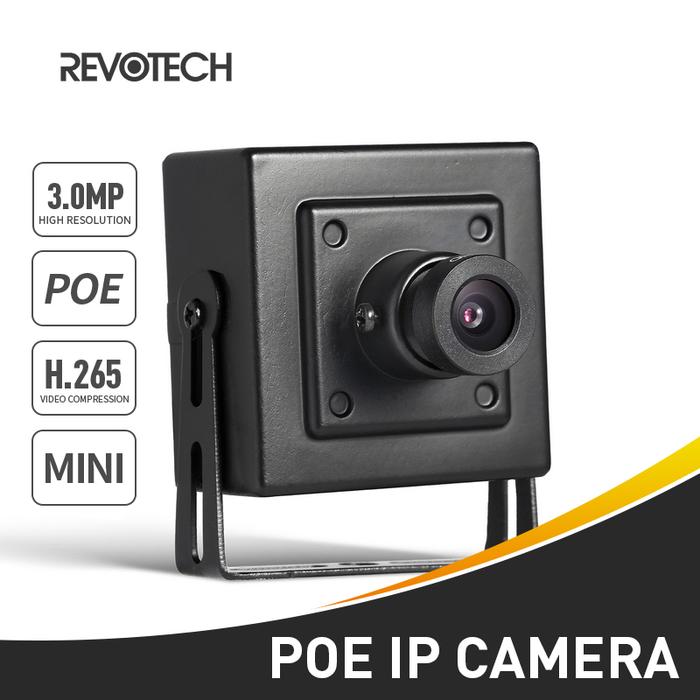

Revotech Mini Type IP Camera H.265 POE HD 3MP Indoor Security ONVIF P2P CCTV System Video Surveillance Cam

Welcome To Our Store
Kami Adalah Sumber Tangan Pertama, Penjualan Skala Besar, Harga Eceran Sama Dengan Harga Grosir

Brand Name : REVOTECH
Model Number : I706-FHW
Color : black
Origin : Mainland China
Installation : Ceiling
Certification : CE
Operating Temperature : -10-60
Sensor : CMOS
Style : Mini Camera
Shell Material : Metal
is_customized : Yes
High Definition : 3.0 Megapixels
Megapixels : 3MP
Scene : Indoor
Connectivity : IP/Network Wired
Lens (mm) : 8mm,6mm,3.6mm,2.8mm
Minimum Illumination(Lux) : NA
IR Distance(m) : 0
Video Compression Format : H.264,H.265
Alarm Action : Email Photo
Supported Mobile Systems : IOS,Android
Supported Operating Systems : Windows 10,Windows Vista,Windows 8,Windows 7,Windows 98,Windows XP
Power Supply(V) : POE48V / DC12V
Power Consumption(W) : 48W
Dimensions (L x W x D)(mm) : 5.3x 4.5 x 4cm
Audio Output : None
Storage : None
Power Supply : With POE
TF Card : None
Smart home platform : none
Color Night Vision : no
AI Functions : Motion Detection
Hign-concerned Chemical : None
Technology : Mini


H.265 POE HD 3MP Mini Type IP Camera 1296P / 1080P Indoor Security ONVIF P2P CCTV System Video Surveillance Cam

-

3MP 2304*1296P resolution

- Support H.265 encode, compare with H.264, transit same quality image only need half of the bandwidth; Record same quality image only need half of the storage;

- Also support H.264 encode, so it can be compatible with both H.264 and H.265 device.

- Support POE, reduce the trouble of cable arrangement.

- Have auxiliary power supply, can use like a Non-POE IP camera.

- Support iPhone, Android smart phone

- P2P Cloud Function

- Support Motion Detection, Email Alarm function

- Supp

ort Multi-Language

- Net Weight:0.2KG

-MetalMaterial Shell

- Simple Operation and Easy to Use

-
Note:

1. IP camera will create more heat and the case of this camera is small, so after you operate the camera for a while, you will feel the camera is hot. And do not worry, it is normal and safe, hope you can understand.

2.

This camera default 3MP & H.265, if your NVR do not support 3MP or H.265, you can change our camera into 1080P (2MP) and H.264.

3.
"POE 48V" Option

mean the camera support POE, can power from POE, need to connect with a 802.3AF Standard 48V POE Switch (It have auxiliary power supply connector, can be used like a Non-POE IP camera).

4.
"DC 12V" Option

mean the camera is regular version, do not support POE and it can only with with a 12V regular power.

Camera

Model:I706-FHW

Resolution:2304 x 1296P 3.0mega Pixels camera

Sensor: FH8852 + GC2053

Min illumination: 0.1Lux @(F1.2,AGC ON)

Frame rate: 20 fps

Shutter: 1/25 seconds -1/100,000seconds

Lens: 2.8mm, 3.6mm, 6mm, 8mm

Lens interface type: M12

Digital noise reduction: 3DDigital noise reduction

Compression Format: H.264 / H.265

Compression rate output: 128 Kbps~8Mbps

Storage: NVR or Computer

IP address: Dynamic (Default) / Static

Smart alarm: Motion detection, Email alarm, CMS alarm

Support protocol: HTTP, TCP/IP, ICMP.RTSP, RTP, RTCP, SMTP, DHCP, DNS, PPPoE, NTP

Input protocol: The standard ONVIF

General function: A key recovery, dual stream, password protection, video hiding

Ethernet: 10M / 100M mbps Ethernet (RJ-45)

General

Operating Temperature: -25C~60C

Operating Humidity: 10

Power Supply:

POE 48V option support POE 48V(802.3af) & DC12V/2A

DC 12V option support DC12V/2A

POE Standard: 802.3af

Housing Material:
Metal

Dimension:

5.3 x 4.5x 4cm

Weight:0.2kg

Package Content

1 x Camera

1 X User Manaul

1 x Screws Set

Power supply Note:

1.

POE 48V version

can

power from POE

, need to connect with a802.3AF Standard 48V POE Switch. if you need one, please click the picture to buy.

2.Both

POE 48V version

and

DC 12V

version

have not include power adapter, if you need one, please click the picture to buy.

Daytime + Indoor

Night with light + Indoor

Browser View:

CMS ViewCMS View

App View

How to download and use the APP? Please click here to know it.

NOTE

:

System 1 also can save the video by CMS software, but it need to set and open the computer all the time. It is not convenient, so we suggest your to use system 2 to save the video. It is stable and reliable.
