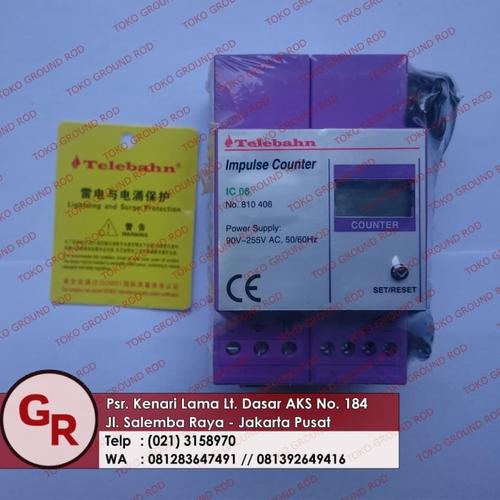

Telebahn IC 06 Alat Penghitung Sambaran Petir Digital 4 Digit
Rp1.650.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Semua Etalase
Lightning Impulse Counter Type IC 06 adalah alat untuk menghitung sambaran petir.
Type : IC 06
Merk : Telebahn
Berat : 229 Gram
Made in : China
Part No. : 810 406
IC-06 IMPULSE LIGHTNING STRIKE COUNTER / IC-06 LIGHTNING STRIKE COUNTER / IC-06 FAULTS REPORTER ( with RS485 communication interface)
Product Description
For counting the times of discharge by surge protective devices, the unit is equiped with an RM input port, to detect any changes from the SPD RM terminal, and remote location, distance approx. 300m maximum. As well as be able to communicate via RS485 the number of impulse counter recorded, and remote control for set and reset operation.
Main character
; 3 standard module width
; Inductive loop ( feed through with the earthing line of surge protective devices)
; 4 digits LCD display, with set and reset function
; RS485 remote communication function
; 1m long inductive twisted pair
Technical Data :
Response behaviour of impulse current : > 1kA
Rise time : 8-10 microseconds
Sequnce of impulse : > 1s
LCD indicator : 0 - 9999
Inductive line : 1 m long twisted-pair
Power supply : 90V~255V AC, 50/60Hz
RS485 interface : RS485 and Modbus communication protocol to achieve remote display and control
Transmission range : 300m (1pairs UTP signal line)
Mounting on : 35mm DIN rail
Enclosure material : Purple thermoplastic, UL94-V0
Dimension : 3 mods
Certification : IEC 61643-1; GB 18802.2; YD/T 1235.1
Type of remote signaling contact : contact
Switching capacity : AC: 250V/0.5A; DC: 250V/0.2A, 125V/0.2A, 75V/0.5A
Cross-sectional area of remote signaling contact : Max. 1.5mm2 solid/flexible
TOKO GROUND ROD
Pasar Kenari Lama
Lt. Dasar AKS No. 184
TELP : 021-3158970
WA : 0812-8364-7491
Type : IC 06
Merk : Telebahn
Berat : 229 Gram
Made in : China
Part No. : 810 406
IC-06 IMPULSE LIGHTNING STRIKE COUNTER / IC-06 LIGHTNING STRIKE COUNTER / IC-06 FAULTS REPORTER ( with RS485 communication interface)
Product Description
For counting the times of discharge by surge protective devices, the unit is equiped with an RM input port, to detect any changes from the SPD RM terminal, and remote location, distance approx. 300m maximum. As well as be able to communicate via RS485 the number of impulse counter recorded, and remote control for set and reset operation.
Main character
; 3 standard module width
; Inductive loop ( feed through with the earthing line of surge protective devices)
; 4 digits LCD display, with set and reset function
; RS485 remote communication function
; 1m long inductive twisted pair
Technical Data :
Response behaviour of impulse current : > 1kA
Rise time : 8-10 microseconds
Sequnce of impulse : > 1s
LCD indicator : 0 - 9999
Inductive line : 1 m long twisted-pair
Power supply : 90V~255V AC, 50/60Hz
RS485 interface : RS485 and Modbus communication protocol to achieve remote display and control
Transmission range : 300m (1pairs UTP signal line)
Mounting on : 35mm DIN rail
Enclosure material : Purple thermoplastic, UL94-V0
Dimension : 3 mods
Certification : IEC 61643-1; GB 18802.2; YD/T 1235.1
Type of remote signaling contact : contact
Switching capacity : AC: 250V/0.5A; DC: 250V/0.2A, 125V/0.2A, 75V/0.5A
Cross-sectional area of remote signaling contact : Max. 1.5mm2 solid/flexible
TOKO GROUND ROD
Pasar Kenari Lama
Lt. Dasar AKS No. 184
TELP : 021-3158970
WA : 0812-8364-7491
