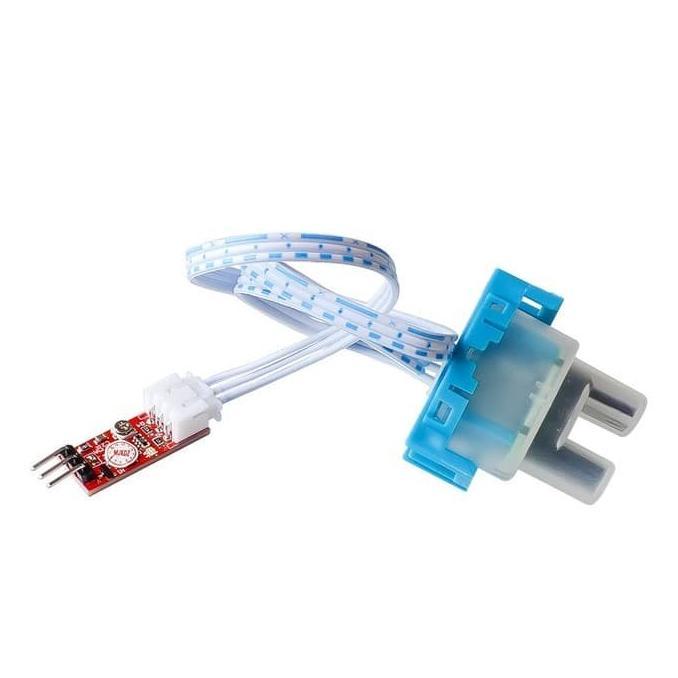

RED Turbidity Sensor Kualitas Kejernihan kekeruhan Air Module Arduino (SKU AR)

Selamat datang di Gudang Robotiks Deskripsi RED Turbidity Sensor Kualitas Kejernihan kekeruhan Air Module Arduino Turbidity Transducer Water Turbidity Module Mixed Water Detection Module Turbidity Sensor Module Liquid for Arduino Parameters: Voltage : 3.3-5V #34; #34; #39;with Anticonnect circuit #34; #34; Output : the default simulation (can be set high and low level output) Send for Arduino reads code The Water Turbidity Sensor Module detects water quality by measuring the levels of turbidity. It uses light to detect suspended particles in water by measuring the light transmittance and scattering rate, which changes with the amount of total suspended solids (TSS) in water. As the TTS increases, the liquid turbidity level increases. Turbidity sensors are used to measure water quality in rivers and streams, wastewater and effluent measurements, control instrumentation for settling ponds, sediment transport research and laboratory measurements. SPECIFICATION Operating Voltage: 3.3-5V DC Operating Current: 40mA (Max) Insulation Resistance; 100M (Min) Output Method: Analog Analog Output: 0-4.5V Digital Output: High/Low Level Signal (you can adjust the threshold value by adjusting the potentiometer) Operating Temperature: 5C~90C Storage Temperature: -10C~90C Adapter Dimensions: 38mm*28mm*10mm MOHON CHAT DULU SEBELUM ORDER UNTUK MEMASTIKAN KETERSEDIAAN PRODUK
