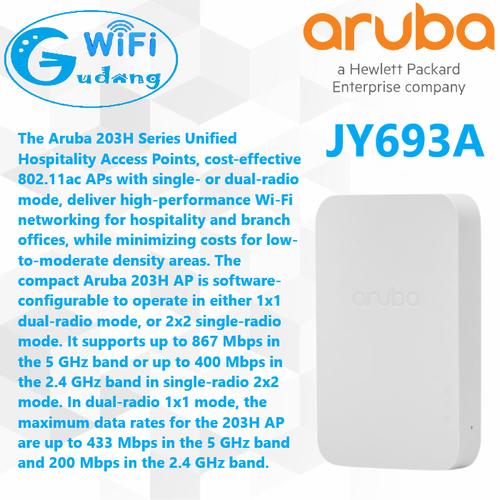

JY693A HPE Aruba AP-203H Unified Wireless AP Flex-radio 802.11ac 2x2

JY693A HPE Aruba AP-203H Unified Hospitality Wireless AP Flex-radio 802.11ac 2x2 - Internal Antennas

The Aruba 203H Series Unified Hospitality Access Points, cost-effective 802.11ac APs with single- or dual-radio mode, deliver high-performance Wi-Fi networking for hospitality and branch offices, while minimizing costs for low-to-moderate density areas. The compact Aruba 203H AP is software-configurable to operate in either 1x1 dual-radio mode, or 2x2 single-radio mode. It supports up to 867 Mbps in the 5 GHz band or up to 400 Mbps in the 2.4 GHz band in single-radio 2x2 mode. In dual-radio 1x1 mode, the maximum data rates for the 203H AP are up to 433 Mbps in the 5 GHz band and 200 Mbps in the 2.4 GHz band.

General
Device Type Wireless access point
Ruggedized Design Indoor
Width 3.4 in
Depth 1 in
Height 5.5 in
Weight 7.94 oz
Localization Rwanda
Networking
Form Factor Wall mountable
Data Transfer Rate 867 Mbps
Line Coding Format CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM
Data Link Protocol IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Spread Spectrum Method OFDM, DSSS
Frequency Band 2.4 GHz, 5 GHz
Performance Maximum data rate (2.4 GHz): 400 Mbps ¦ Maximum data rate (5 GHz): 867 Mbps
Capacity BSSIDs per radio: 8
Status Indicators Power, system, status
Features Auto-uplink (auto MDI/MDI-X), DFS support, wall mountable, Quality of Service (QoS), Trusted Platform Module (TPM), reset button, 2T2R MIMO technology, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Energy Efficient Ethernet, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), dual-stream (2x2), Advanced Cellular Coexistence (ACC), cyclic shift diversity (CSD), Aruba Beacons Bluetooth Low-Energy (BLE) technology, packet aggregation A-MPDU, packet aggregation A-MSDU, wireless intrusion protection, Air Monitor (AM)
Compliant Standards IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g
