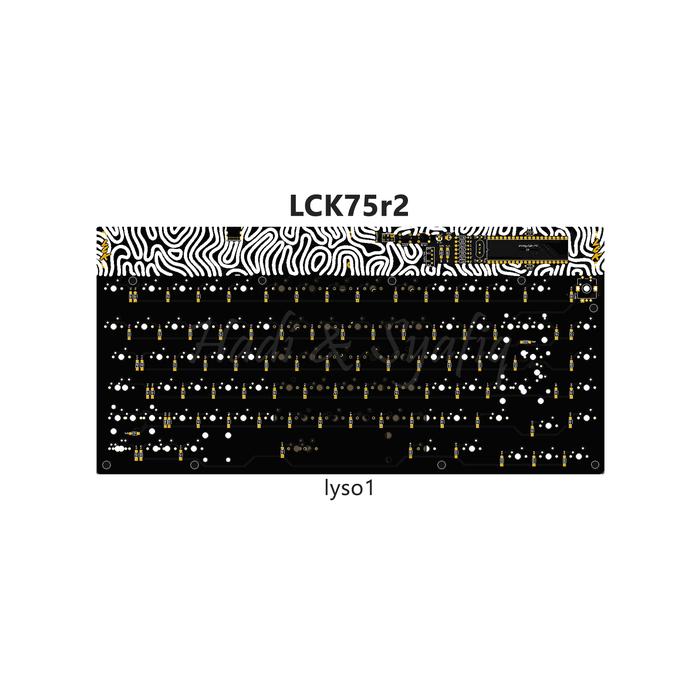

LCK75 Through Hole Mechanical Keyboard PCB

ini hanya "PCB KOSONG", tanpa komponen dan lain2nya sama sekali
tidak ada garansi dan support, pembeli dianggap mengerti barang yg dibeli, jika tidak tau cara merakit/build PCB seperti ini sebelumnya lebih baik praktek dulu di breadboard. atau cari jasa yg bisa membantu atau beli rakitan yg sudah jadi di toko lain.

lihat foto ke 2 untuk contoh gambar produk asli yg akan anda terima
ini hanya pcb utama saja, plate dan bottom pcb tidak termasuk!

a 75% through-hole keyboard
The 2nd revision of the LCK75, this is updated to supported more layouts options such as ISO and split backspace.

untuk penjelasan dan panduan silahkan lihat langsung di
https://github.com/lyso1/LCK75r2

via firmware :
https://cdn.discordapp.com/attachments/931330786890756096/969331791066431528/lck75_via.hex

json file:
https://cdn.discordapp.com/attachments/823577234420924437/990792343663808582/lck75-iso_3.json

vial firmware:
https://cdn.discordapp.com/attachments/931330786890756096/1087853355231092786/lck75_vial_encoder.zip

Product Detail:
Layers: 2
PCB Thickness: 1,6mm
PCB Color: Black
Silkscreen: White
Surface Finish: HASL(with lead)
Flying Probe Test: Fully Test
Material Type: FR4-Standard Tg 130-140C
Appearance Quality: IPC Class 2 Standard


Partner In Crime

Commission Build:
https://www.tokopedia.com/jaykeeb
Component through hole:
https://www.tokopedia.com/pklmkb
Custom plate:
https://www.tokopedia.com/projectvulcan
Custom case:
https://www.tokopedia.com/craftedwithdedication
Switch and acc:
https://www.tokopedia.com/mechkeyboardsid
Other:
https://www.tokopedia.com/kbdksp
