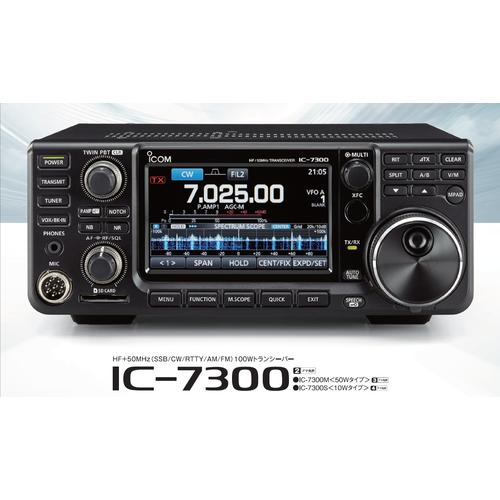

HF Trasceiver Icom IC7300
ORI Baru Garansi Service 1Tahun
* Output power : 100W (25W AM)
* RX Frequencies : 0.030-74.800
* Receiver type : Direct sampling
SPECS
* Frequency coverage : 0.03074.800*
* Mode : SSB, CW, RTTY, AM, FM
* Number of channels : 101 (99 regular, 2 scan edges)
* Antenna connector : SO-239 (50)
* Power supply requirement : 13.8V DC 15%
* Power Consumption :
Tx: 21A (at 100W output power).
Rx: 0.9A typical (standby), 1.25A (Max audio).
* Operating temperature range : 10C to +60C; 14F to 140F
* Frequency stability : Less than 0.5ppm (10C to +60C; 14F to 140F)
* Frequency resolution : 1Hz
* Dimensions : 24094238mm; 9.453.79.37in
* Weight : 4.2kg; 9.26 lb (approximately)
* Transmitter output power : 100W on HF/50MHz, 50W on 70MHz
* Tuner matching SWR range : 3:1 full power, 10:1 emergency mode (50% power)
Kelengkapan :
* IC-7300,
* HM-219,
* Kabel DC
* Fuse
* Kartu garansi
* Buku manual.
Kabel DC Ori 4 Pin
