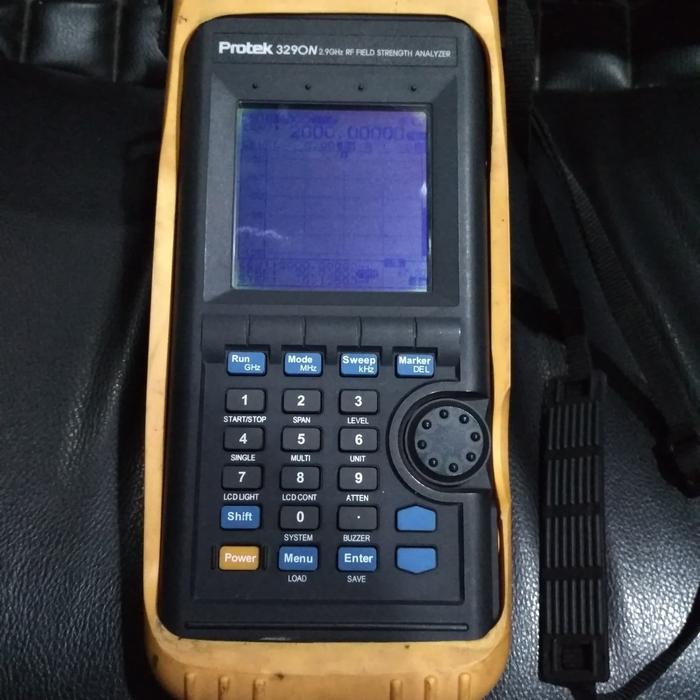

Protek 3290N Hand-Held 2.9GHz RF Signal Strength Analyzer

Protek 3290N Hand-Held 2.9GHz RF Signal Strength Analyzer Specifications : Frequency Frequency Range 100 KHz to 2.9 GHz Resolution 3.1255 kHz Accuracy TXO: 3ppm Display 1.5ppm Modulation W-FM: 180 kHz N-FM 12.5 kHz AM/SSB 2.4 kHz Step Range AM/SSB: 2.5 kHz Fixed FM Multiple of Span Range AM/SSB: 400 kHz Fixed FM Multiple of 1 MHz Frequency Selection Start, Stop, Center Span Setup Amplitude Measurement Range -20 dBm to -100 dBm Average Noise Level -100 dBm Amplitude Units dBm, dBmV, dBuV Reference Level Accuracy 2 dB Reference Level Range +20 dBm to -70 dBm Log Scale 10dB/DIV Internal Atten 10dB Sweep Speed 500 to 2000 msec Trigger Source N-FM, W-FM, AM, SSB Trigger Mode Free Run, Single Run, Continuous Wave, Squelch Run Trigger Level TTL Level Marker Modes Marker, Delta Marker Memory Trace Storage 100 Waves Setup Storage 100 States Display Type Mono STN LCD Resolution 192 x 192 LCD Backlight On/Off/Auto Mode Spectrum, Multi Bar Input RF Input Connector N Type Female, 50 ohm Maximum Input Power Max. +10 dBm, 5V RMS Frequency Counter Range 9 MHz to 2.9 GHz Resolution 7 Digits Sampling Time 1 sec Input Impedance 50 ohm Max. Input Voltage Max. 5 Vrms RF Input Connector BNC type, 50 ohm Data Memory 10 data General Specification Operation Temperature 0 to 40 deg Humidity 35RH to 85RH Storage Temperature -10 to 50 deg. Size 9.5\ H x 4.0\ W x 1.8\ D Weight 1.4 lbs
