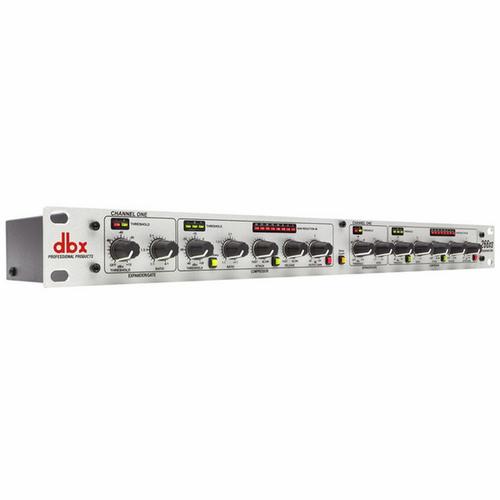

dbx 266XS Dual Compressor/Gate/Limiter

Features:
Error proof operation to smooth uneven levels, add sustain to guitars, fatten drums or tighten up mixes
New gate timing algorithms ensure the smoothest release characteristics
Balanced inputs and outputs on 1/4in TRS and XLR connectors

Specifications:
Input Connectors: 1/4in TRS and female XLR (pin 2 hot)
Input Type: Electronically balanced/unbalanced, RF filtered
Input Impedance: 40kΩ balanced/unbalanced
Max Input: >+22dBu Balanced or Unbalanced
Output Connectors: 1/4in TRS, female XLR (pin 2 hot)
Output Type: Impedance-balanced/unbalanced, RF filtered
Output Impedance: +4dBu: 100Ω balanced, 50Ω unbalanced; -10dBu: 1kΩ balanced, 500Ω unbalanced
Max Output: ;+21dBu balanced/unbalanced into 2kΩ or greater;+18dBm balanced/unbalanced (into 600Ω)
Sidechain: 1/4in TRS Phone, Normalled: Ring = Output (send); tip = Input (return)
Sidechain Impedance: Tip = >10kΩ (Input), Ring = 2kΩ (Output)
Sidechain Max Input Level: Tip =;+22dBu (Input)
Sidechain Max Output Level: Ring = >+20dBu (Output)
Compressor Threshold Range: -40dBu to +20dBu
Compressor Threshold Characteristic: Selectable OverEasy or hard knee
Compressor Ratio: 1:1 to Infinity:1
Compressor Attack Time: Scalable Program-Dependent AutoDynamic
Compressor Release Time: Scalable Program-Dependent AutoDynamic
Expander/Gate Threshold Range: -60dBu to +15dBu
Expander/Gate Ratio: 1:1 to 4:1
Expander/Gate Attack Time:
Expander/Gate Release Time: Program-dependent
Bandwidth: 0.35Hz - 90kHz, +0/-3dB
Frequency Response: Flat: 20Hz-20kHz, +0, -0.5dB
Noise:
THD+Noise: Typically
IMD: Typically
Dynamic Range: >114 dB, unweighted
Interchannel Crosstalk:
CMRR: >40dB, typically >55dB at 1kHz
Stereo Coupling: True RMS Power Summing
Power Consumption: 15 Watts Maximum
Operating Voltage: 100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz
Operating Temperature: 0°C to 45°C (32°F to 113°F)
Dimensions: 1.75in x 5.75in x 19in (4.45 cm x 14.6 cm x 48.26 cm )
Unit Weight: 4.84 lbs (2.19 k
